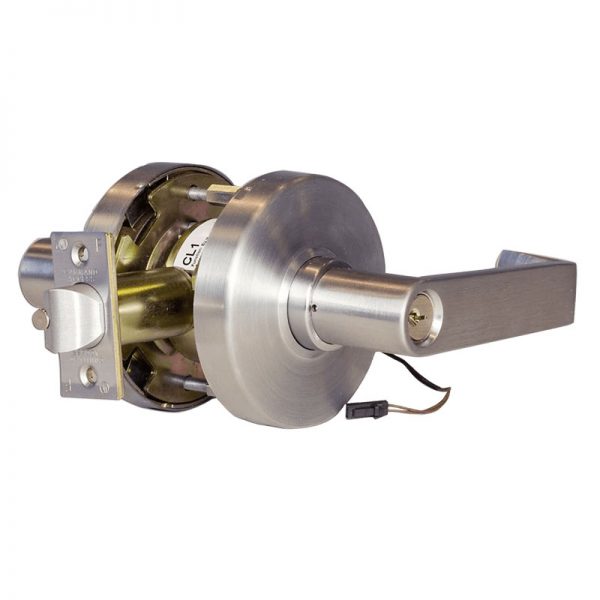

Command Access CL180LE-EU Electrified Cylindrical Lock (Similar to Schlage ND Series), Fail Secure, 11-30 VDC, Request to Exit
The Command Access CL180 LE series is a low-energy, cost effective cylindrical lock that is ideal for any continuous duty application or condition requiring low surge and hold current. Its unique electronics allow the CL180LE to function much like a motor-driven lockset without the potental problems inherent in motors. The CL180LE will operate with an input voltage between 11-30 volts, eliminating the need to inventory 12 and 24V models. The CL180LE features a standard Built-in Request to exit (REX/AE) switch.
- Low maximum current draw 400 mA (12V): use more locks on a single power supply – Additional savings for the owner
- Low holding current 30 mA : reliable operation and meets sustainable consideration
- Request-to-exit built-in
- Available with Schlage C keyway, SFIC (less core), or LFIC (Schlage – less core)
- 3-year electronic warranty
- Made in the USA
Voltage:
- Operating Voltage – 11-30 VDC
- Surge Current: 400 mA @12V, 200 mA @ 24V
- Holding Current: 30 mA
Function:
- CL180LE-EU: Outside lever unlocked (EU) electronically. Latchbolt retracted by key out-side or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress
Brand | |
---|---|
Finishes | 613 Oil Rubbed Bronze, 626 Satin Chrome |
Lever Design | L6 (Bent Lever), L17 (Curved Lever) |
Cylinder | LFIC: Large Format Schlage IC Prep (less core), P: Schlage C Keyway, SFIC: Small Format IC Prep (less core) |
Voltage | Voltage range – 11 to 30 VDC |
Lock Function | Electrified Storeroom |
Usage | Heavy Duty |
ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
Handing | Non-Handed |
Backset | 2-3/4" |
Latch | 1/2” throw, deadlocking – 1-1/8" x 2-1/4" face |
Strike | 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
Door Thickness | 1-3/4" |
Buy American Act Compliance | Meets BAA – Buy American Act |
