Cal-Royal XP05 Storeroom Lever Lock

$63.90

Usually Ships: 2-3 Business Days
  • ANSI/BHMA Certified A156.2, Grade 2
  • ANSI Function F86 – Storeroom
  • ADA compliant, 3-hour fire-rated

Product Overview

Cal-Royal Explorer XP Series Cylindrical Lever Lock, XP05 Storeroom Function

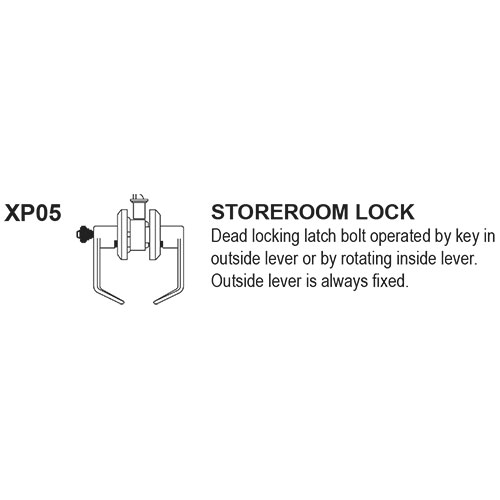

ANSI Function F86 – Dead locking latch bolt operated by key in outside lever or by rotating inside lever. Outside lever is always fixed.

  • Optional thru-bolt installation
  • Individual spring on each side to prevent lever sag, maintain reliability and reduce maintenance
  • Meets ADA requirements specially designed for Barrier-Free application
  • Conforms with ANSI / BHMA A156.2, Series 4000, Grade 2 Requirements Exceeds 400,000 Cycles
  • For offices, schools, hospitals, apartments, hotels/motels, residential, commercial, and public buildings

codes

Brand

Finishes

US26D (626) Satin Chrome
Lock Function

Storeroom
ANSI/BHMA Standard

Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, Grade 2
Keyway

Schlage C Keyway
Latch

1/2" throw, deadlocking – 1" x 2-1/4" square corner, packed with 1/8" filler for 1-1/8" width
Backset

2-3/4"
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Handing

Non-Handed
Door Thickness

1-3/8" to 1-3/4"
Fire Rating

UL/cUL listed up to 3 Hours
Usage

Medium Duty
