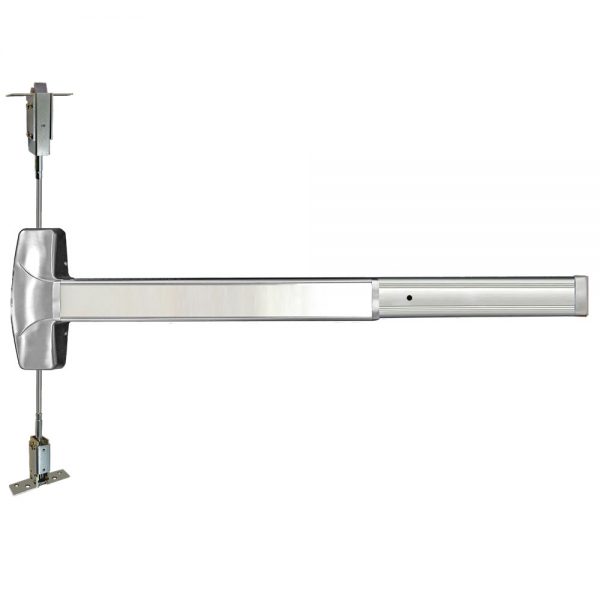

Cal-Royal N-77CVR Concealed Vertical Rod Exit Device

Cal-Royal N-77CVR / N-F77CVR Grade-1 Concealed Vertical Rod Exit Device, Exit Only

For use in institutions, schools, universities, and commercial buildings where heavy-duty, reliable operation is a requirement.

• Exit Only (Outside Trim Sold Separately)
• For Doors – Wood or Metal. 1-3/4″ (44.5 mm) minimum thickness, 4-1/2″ (114 mm) minimum stile width
• Top & Bottom Chassis – Steel Material
• Chassis Cover – Zinc Material
• Mounting – Furnished standard with wood and machine screws
• End Cap – Stainless Steel Construction
• Hand – Handed. Easily field-reversible. Specify at time of order LHR or RHR for convenience.
• ANSI Standard – A156.3, Grade 1

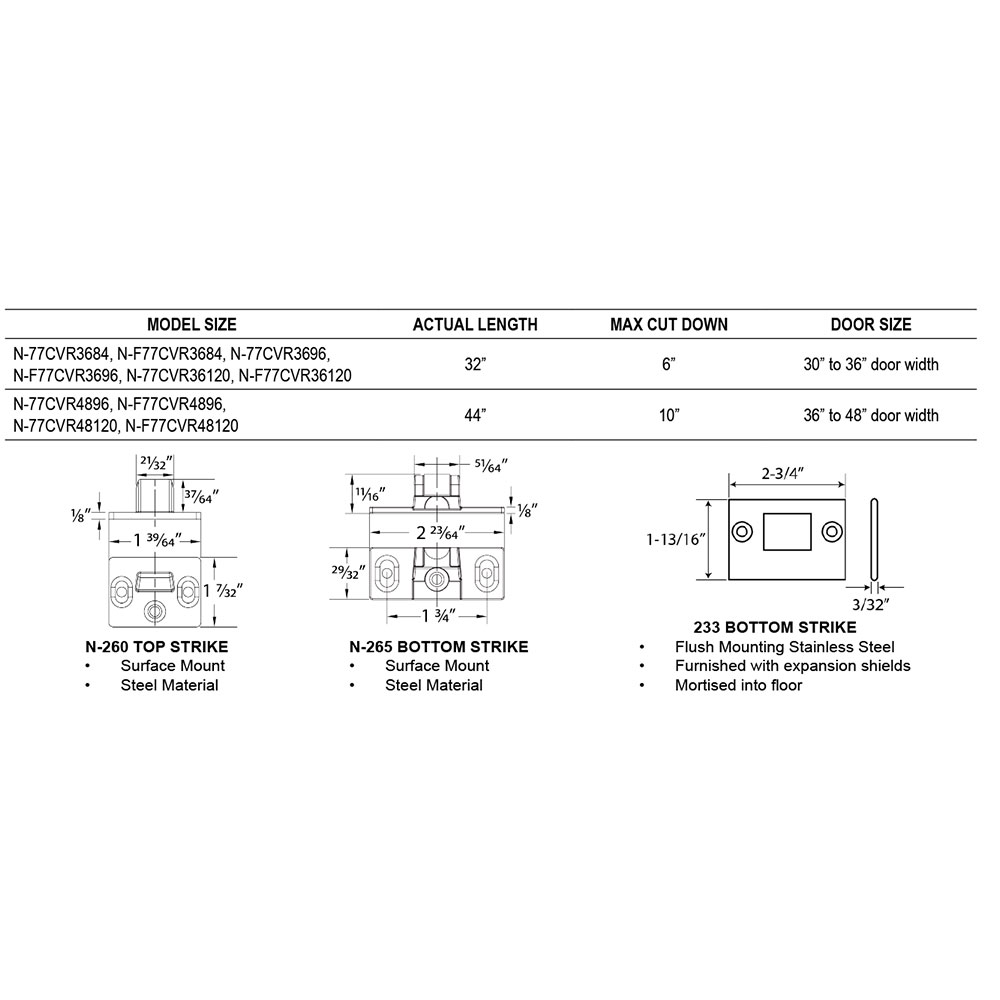

• Strikes – N-260 & N-265 (Steel), 233 (Stainless Steel)
• Fire Exit Hardware – N-F77CVR Series for fire exit hardware for all types of 8’ x 10’ double doors, LBR Series for fire exit hardware for all types of 8’ x 10’ double doors for up to 3 hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes
• Rail Height – Specify door opening and mounting height of center line of rail when ordering a Vertical Rod Exit Device 41” from floor
• Dogging Feature – Cylinder dogging available for non-rated applications
