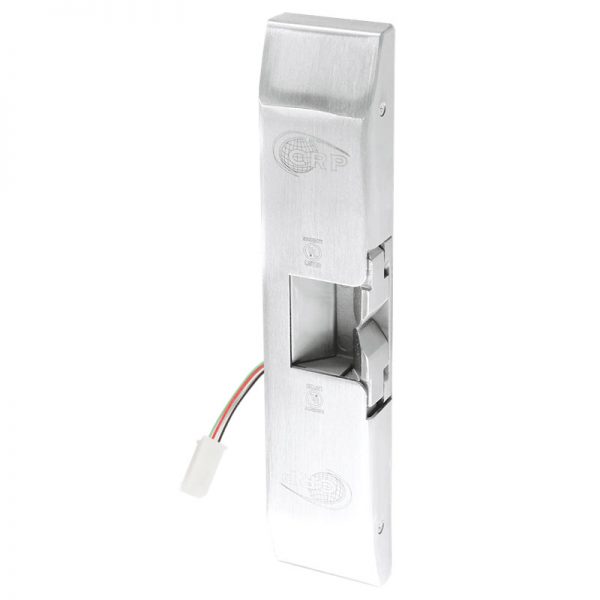

Cal-Royal ES1934 Electric Strike for Rim Exit Devices

Usually Ships: 2-3 Business Days
  • For use with rim exit devices (up to 3/4″ latch)
  • Field selectable 12/24 VDC
  • Installs in metal or wood frames

Available Options:

Clear

Cal-Royal ES1934 Electric Strike for Rim Exit Devices, Field Selectable 12/24 VDC, Field Selectable Fail-Safe/Fail-Secure

FEATURES:

  • Designed for use with Rim Exit Devices with Pullman Latch
  • No Frame Cutting Required – Surface Mounted
  • Horizontal Adjustment
  • For Hollow Metal and Wood Frame Applications
  • Non-Handed, Fully Reversible
  • Field Reversible for Fail Safe or Fail Secure Operation
  • Static Strength: 1500 lbs (680 kg)
  • Dynamic Strength: 70 ft-lbs
  • Endurance Rating: 250,000 Cycles (UL Tested), 1,000,000 Cycles (Factory Tested, Exceeds Grade 1 Standards)
  • Optional Latch Monitor ES1934-M indicates when door is latched

SPECIFICATIONS:

  • Voltage: Dual 12/24VDC
  • Current Draw: 540mA @ 12VDC, 270mA @ 24VDC
  • Latch Throw: 3/4″ (19mm)
  • Mount: Surface

APPROVALS AND LISTINGS:

  • UL1034 Burglary-Resistant Listed: BP21351
  • UL294 Access Control System Listed: BP21351
  • UL10B / UL10C Fire Rated: R40649
  • CAN / ULC-S104 Fire Door Conformant: R40649
Brand

Finishes

US1 (622) Flat Black, US32D (630) Satin Stainless Steel

Electrical

Voltage: Dual 12/24VDC – Current Draw: 300mA @ 12VDC, 150mA @ 24VDC

Usage

Heavy Duty

Fire Rating

UL10B / UL10C Fire Rated (Fail-Secure Only)

Lock Type Compatibility

Rim Exit Device

Part Type

Complete Electric Strike
