Cal-Royal ES1433 Universal Electric Strike for Cylindrical Locks and Mortise Locks

$122.67

Usually Ships: 2-3 Business Days
  • For use with cylindrical locks and mortise locks
  • Field selectable 12/24 VDC
  • Installs in metal or wood frames

Cal-Royal ES1433 Universal Electric Strike for Mortise Locksets and Cylindrical Locksets, Field Selectable 12/24 VDC, Field Selectable Fail-Safe/Fail-Secure, 3 Faceplates Included, Satin Stainless Steel

FEATURES:

  • Designed for use with Cylindrical or Mortise Locksets without a deadbolt
  • For Hollow Metal and Wood Frame Applications
  • Non-Handed, Fully Reversible
  • Field Reversible for Fail Safe or Fail Secure Operation
  • Static Strength: 1500 lbs (680 kg)
  • Dynamic Strength: 70 ft-lbs
  • Endurance Rating: 250,000 Cycles (UL Tested), 1,000,000 Cycles (Factory Tested, Exceeds Grade 1 Standards)

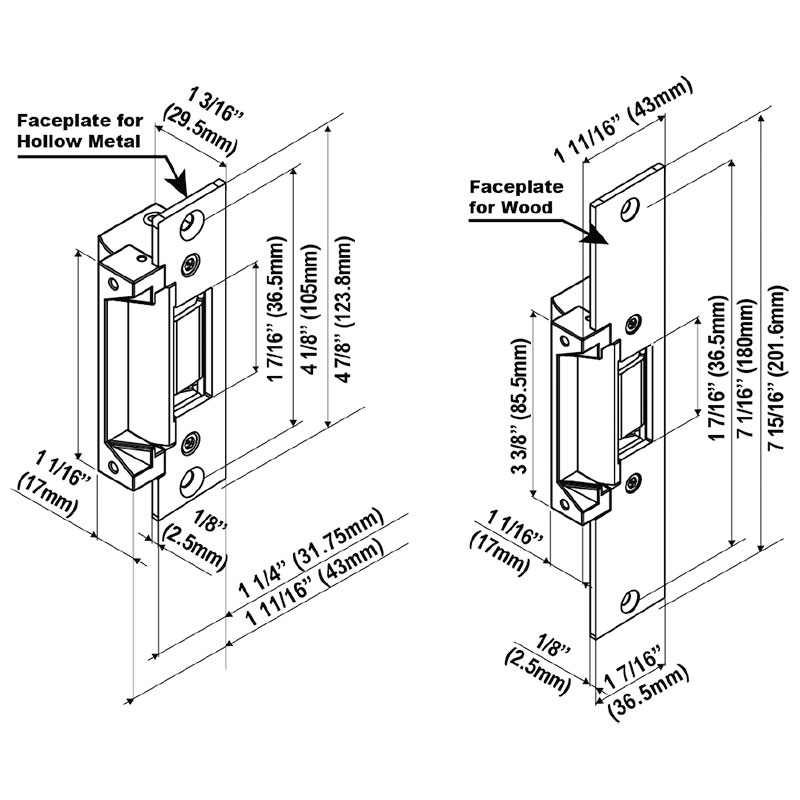

  • 1 Stainless Steel & 2 Aluminum faceplates for Hollow Metal and Wood Frames: ESFP-478 US32D (Faceplate for Metal), ESFP-478 ALUM (Faceplate for Metal), ESFP-715 ALUM (Faceplate for Wood)
  • Trim Plate also included, in case of over-cutting to cover up any errors
  • Stick-On Template for easier installation

SPECIFICATIONS:

  • Voltage: Dual 12/24VDC
  • Current Draw: 300mA @ 12VDC, 150mA @ 24VDC
  • Latch Throw: ¾” (19mm)
  • Keeper Width: 1 7/16” (36mm)
  • Mount: Mortise
  • Body Construction: Zinc Alloy

APPROVALS AND LISTINGS:

  • UL1034 Burglary-Resistant Listed: BP21351
  • UL294 Access Control System Listed: BP21351
  • CE: EC741012-01
Brand

Finishes

US32D (630) Satin Stainless Steel

Electrical

Voltage: Dual 12/24VDC – Current Draw: 300mA @ 12VDC, 150mA @ 24VDC

Usage

Standard Duty

Lock Type Compatibility

Cylindrical Lock, Mortise Lock

Part Type

Complete Electric Strike
