CAL-ROYAL-CR3000-US26D
CAL-ROYAL-CR3000-US26D

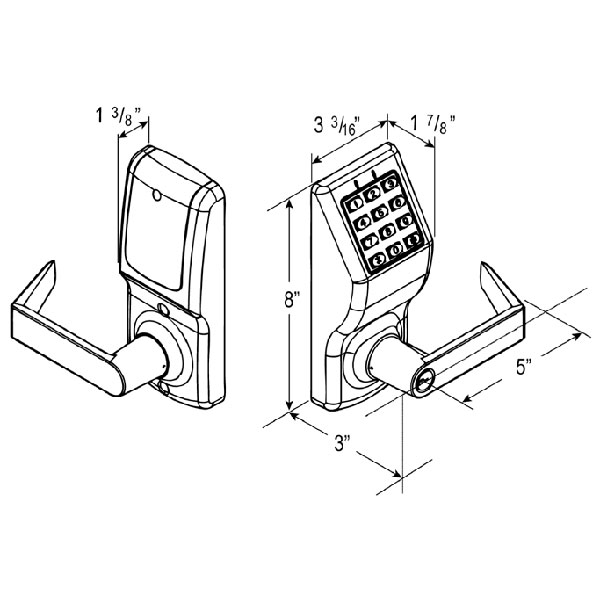

Cal-Royal CR3000 Digital Keypad Lever Lock

Usually Ships: 2-3 Business Days
  • Heavy Duty Grade-1 standalone electronic lock
  • Easy installation & programming
  • Mechanical key override, Schlage C keyway

Available Options:

Clear

Product Overview

Cal-Royal CR3000 Grade 1 Heavy Duty Digital Keypad Door Lock

For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial, and Public Buildings

Function: Latch bolt operated by lever from either side, except outside has to enter a pre-programmed code in the keypad in order to retract the latch upon turning the lever. Key overrides the use of the keypad.

  • Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, GRADE 1
  • Easy Installation & Programming
  • Long-Life Battery Operation
  • 2 Remote Switch Terminals
  • Interchangeable Core
  • Master Code
  • 10 Manager Codes
  • 1 Sub-Master Code
  • 90 User Codes
  • 5 Service Codes
  • Passage Mode
  • Weather Resistant
  • Buzzer & Led Indicators
  • Anti-Tamper Lockout
  • Clutch Technology
  • Non-Handed, Reversible
  • Enable & Disable Users Mode
  • Tactile Metal Keypad
  • User Friendly
Brand

Finishes

US10B (613) Oil Rubbed Bronze, US26D (626) Satin Chrome
Lock Function

Pushbutton Keypad
Usage

Heavy Duty
ANSI Grade

ANSI Grade 1
Cylinder & Keys

5-pin or 6-pin conventional, keyed different, with 2 keys
Keyway

Schlage C Keyway
Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
Backset

2-3/4"
Strike

4-7/8" ASA Strike
Door Thickness

1-3/4"
Handing

Non Handed – Completely Reversible
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Power

4 AA batteries
Reader Type

Keypad
Door Applications

Interior or Exterior Doors
Warranty

2 Years
