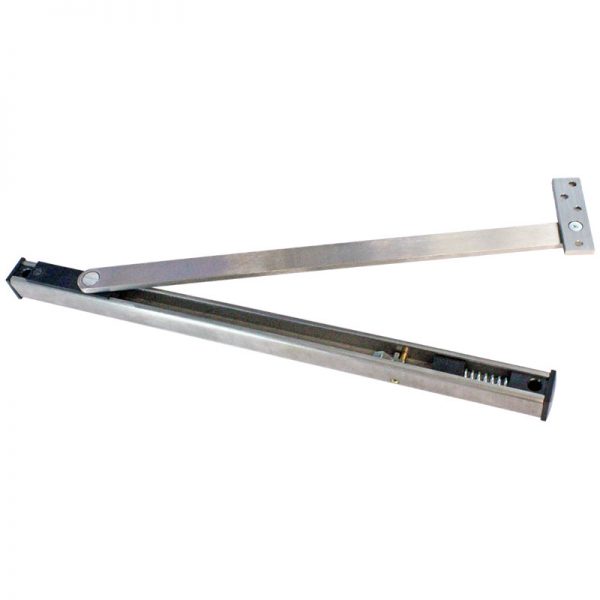

Cal-Royal CON880 Series Concealed Mount Overhead Door Holders and Stops

Usually Ships: 2-3 Business Days
  • Concealed mount
  • Slide track design
  • Satin stainless steel finish

Available Options:

Clear

Cal-Royal CON880 Series Heavy-Duty Concealed Mount Overhead Door Holders and Stops

Application

  • Interior or exterior doors
  • Single or double-acting
  • Non-handed
  • Recommended for high traffic, heavy abuse installations

Features

  • Heavy duty concealed
  • Slide track design
  • Stop or hold open function
  • 1-3/4″ minimum door thickness
  • 110° maximum opening
  • Durable slider cam
  • Surface on / off knob on hold open models
  • Heavy shock absorber spring provides 5-7° compression before dead stop
  • 1 3/16″ square channel
  • Complete screw packet for installation in wood and machine screws for door and frame

Compliance

  • ANSI A156.8 UL Listed as STOP Function

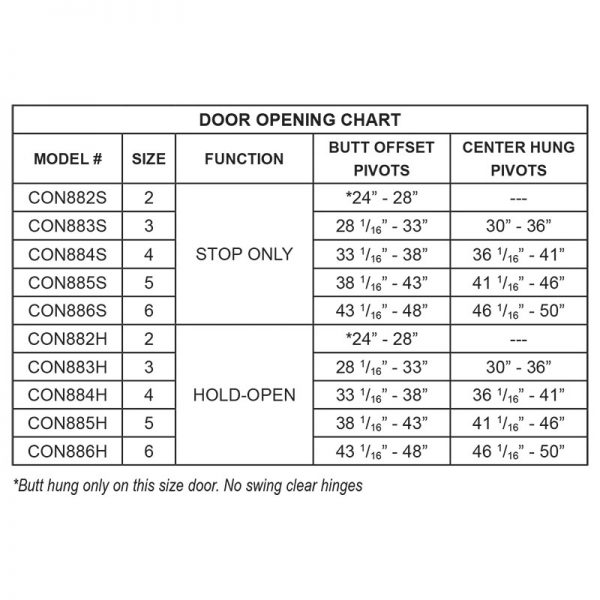

Models: CON882S-US32D, CON882H-US32D, CON884S-US32D, CON884H-US32D, CON886S-US32D, CON886H-US32D

Brand

Finishes

US32D (630) Satin Stainless Steel

Mouting Style

Concealed Mount

Handing

Non-Handed

Usage

Heavy Duty

Fire Rating

UL Listed up to 3 hours (stop function only)
