Cal-Royal CGN09 Institution Lever Lock

Usually Ships: 2-3 Business Days
  • Heavy-Duty, BHMA/ANSI Grade 1 certified
  • Double cylinder, both sides opened by key, always locked
  • ADA compliant, 3-hour fire-rated

Available Options:

Product Overview

Cal-Royal Genesys Series, CGN09 Institution Lever Lock

For Offices, Schools, Hospitals, Apartments, Hotel / Motel, Residential, Commercial and Public Buildings

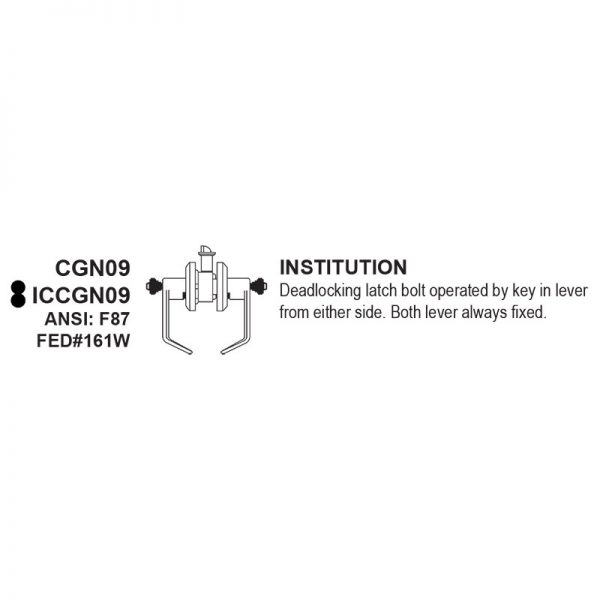

ANSI Function F87 – Deadlocking latch bolt operated by key in lever from either side. Both levers always fixed.

  • Meets or exceeds BHMA / ANSI A 156.2 Series 4000, grade 1 requirements
  • Heavy-duty cylindrical leversets
  • Clutch mechanism, fixed thru-bolt installation
  • ADA Compliant

codes

Brand

Finishes

US10BE (613e) Dark Oxidized Satin Bronze, Equivalent, US26D (626) Satin Chrome
Lock Function

Institution / Asylum
ANSI/BHMA Standard

ANSI/BHMA A156 2 Series 4000 Grade 1
Usage

Heavy Duty
Keyway

Schlage C Keyway
Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
Backset

2-3/4"
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Handing

Non-Handed
Door Thickness

1-3/8" to 1-3/4"
Fire Rating

UL/cUL listed up to 3 Hours
