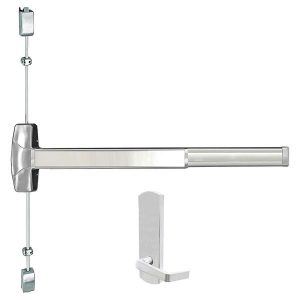

Cal-Royal A7760V x ESC7730 Surface Vertical Rod Exit Device with Escutcheon Passage Lever Trim

Usually Ships: 2-3 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • Includes ESC7730 escutcheon lever trim (keyless)
  • ANSI Function 14 – lever always operable and free

Available Options:

Cal-Royal A7760V/AF7760V x ESC7730 Surface Vertical Rod Exit Device with Escutcheon Passage Lever Trim, Heavy Duty Grade-1

For use in institutions, schools, universities, and commercial buildings where heavy-duty, reliable operation is a requirement.

  • ANSI Function 14 – Trim always operable and free
  • ANSI A156.3, GRADE 1 heavy-duty exit device
  • Retrofits Von Duprin 99 & 98 Series using 7700 Escutcheon trim
  • Rail assemblies are heavy-duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel
  • Trims are thru-bolted for additional security
  • Conforms & Meets ADA Regulations
  • Americans with Disability Act (ADA) Compliant, 5 lbs. opening force
  • UL and ULC Listed – A7760V Series for panic. AF7760V Series for fire exit hardware for all types of 8’ x 10’ double doors for up to 3-hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes.
  • Uncompromising security and safety in single and double fire exit doors
  • Chassis-mounted unit construction
  • Non-handed and easily reversible

ESC7730 Lever Trim

  • 2-3/4″ width x 10-1/4″ length – Lever length: 4-3/4″
  • Fits and covers 2-1/8″ 161 cutout
  • Double heavy-duty spring support to prevent sagging and enhance operation
  • Grade 1, thru-bolted design.
  • Non-handed design – Easily field reversible
  • Hardened steel heavy duty tailpiece
Brand

Finishes

US32D (630) Satin Stainless Steel

Size

36" x 84", 36" x 96", 48" x 96"

Device Type

Surface Rod Device

Stile Type

Wide (Standard)

Usage

Heavy Duty

ANSI Grade

ANSI Grade 1

Fire Rating

7760V Non-rated – F7760V Fire-rated up to 3 Hours

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Includes Trim

Yes

Trim

ESC7730

Handing

Completely Reversible

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Warranty

Limited Lifetime Warranty

Related Products

  • CD7700-US32D

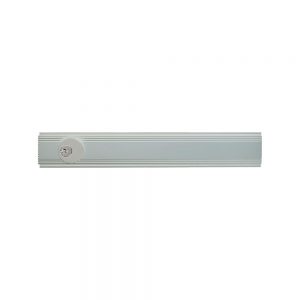

    Cal-Royal - CD7700 Cylinder Dogging Kit for 7700 Series Exit Devices

    Multiple Finishes
    $67.29
  • FLR7700

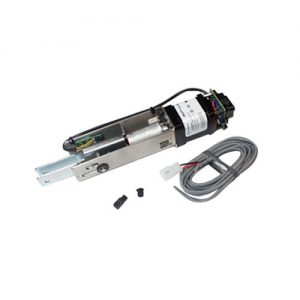

    Cal-Royal - FLR7700 KIT Motorized Electrical Latch Retraction Kit for 7700 Series Exit Devices
