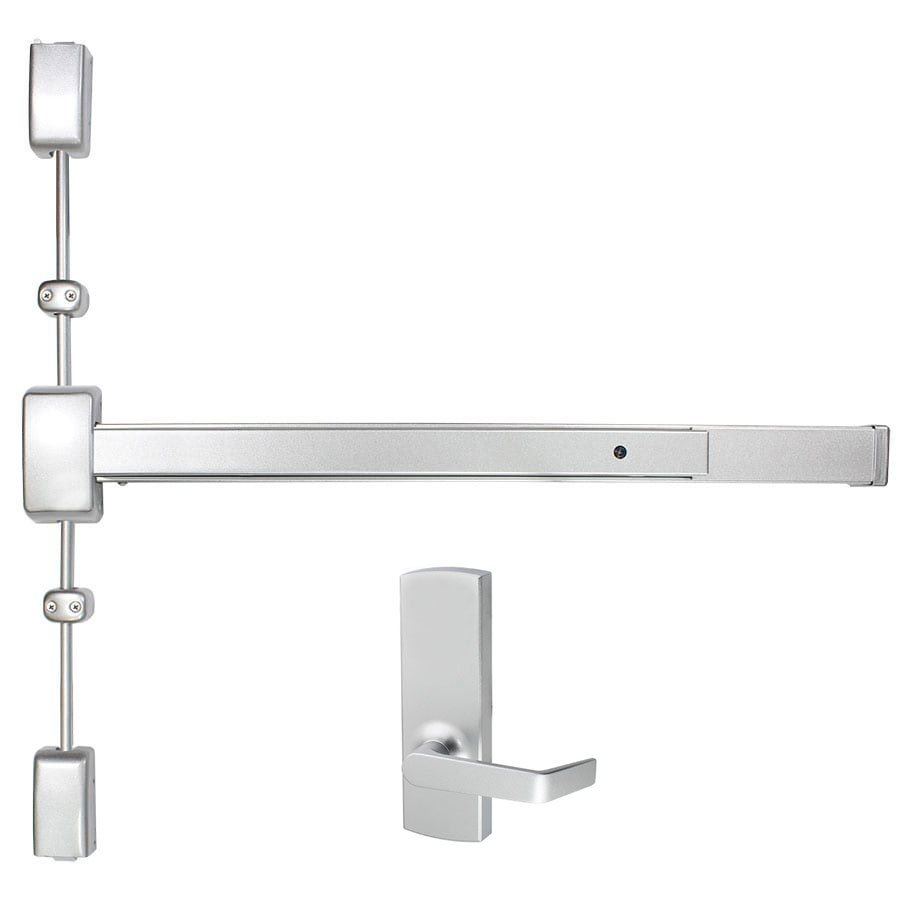

Cal-Royal A2260V x NESC2230 Surface Vertical Rod Exit Device with Escutcheon Passage Lever Trim

Usually Ships: 2-3 Business Days
  • ANSI/BHMA Grade-1 Certified
  • Includes NESC2230 escutcheon lever trim (keyless)
  • ANSI Function 14 – lever always operable and free

Available Options:

Product Overview

Cal-Royal A2260V/AF2260V x NESC2230 Grade-1 Surface Vertical Rod Exit Device with Escutcheon Passage Lever Trim

Uncompromising security and safety in single and double fire exit doors.

  • ANSI Function 14 – Trim always operable and free
  • ANSI A156.3, Grade-1 exit device
  • Conforms & Meets ADA Regulations
  • UL Listed for Panic and UL10C, UBC 7-2-1997 codes
  • -F Models UL Listed for Fire Exit Hardware (3 hours)
  • Chassis-mounted unit construction

NESC2230 Lever Trim

  • Grade 1, thrubolted design, rigid non-clutch lever
  • Non handed design
  • Hardened steel heavy duty tailpiece
  • For fire and non-fire rated rim and vertical rod exit devices

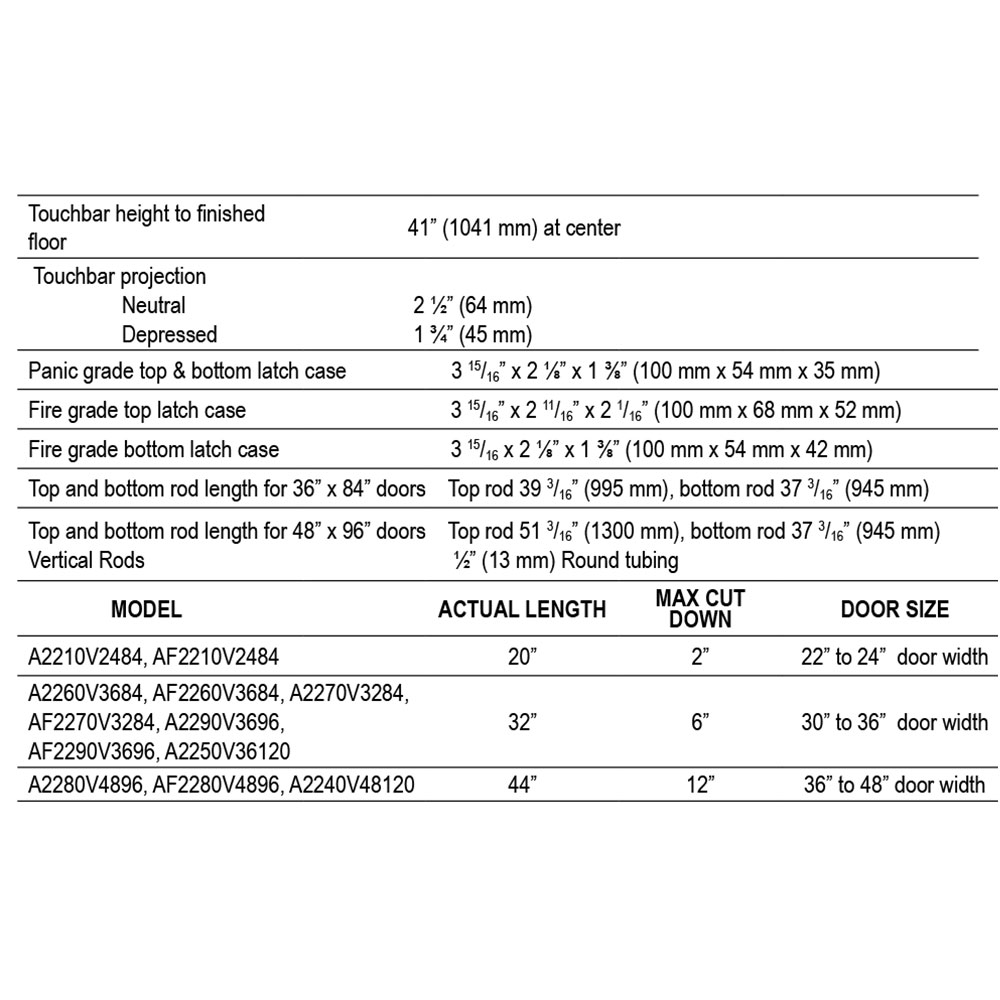

Models

  • 2210V 24″ x 84″ and F2210V 24″ x 84″ – (22″ – 24″ door width – Maximum cut down 2″)
  • 2280V 48″ x 96″ and F2280V 48″ x 96″ – (36″- 48″ door width – Maximum cut down 12″)
  • 2290V 36″ x 96″ and F2290V 48″ x 96″ – (30″- 36″ door width – Maximum cut down 6″)

exit_logos

Brand

Finishes

ALUM (Aluminum), DURO (Dark Bronze), L1 Black
Size

36" x 84", 36" x 96", 48" x 96"
Includes Trim

Yes
Trim

NESC2230
Usage

Medium Duty
Handing

Handed – Field Reversible
ANSI/BHMA Standard

BHMA/ANSI A156.3, Grade 1 Certified
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

A2210V/A2260V/A2280V/A2290V Non-Fire-rated – AF2210V/AF2260V/AF2280V/AF2290V 3 Hour Fire-Rated
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Stile Type

Wide (Standard)
Device Type

Surface Rod Device
Warranty

Limited Lifetime Warranty
