Best 45H0N Passage Mortise Set

Usually Ships: 1-2 Business Days
  • Extra Heavy-Duty, ANSI/BHMA Grade-1 Certified

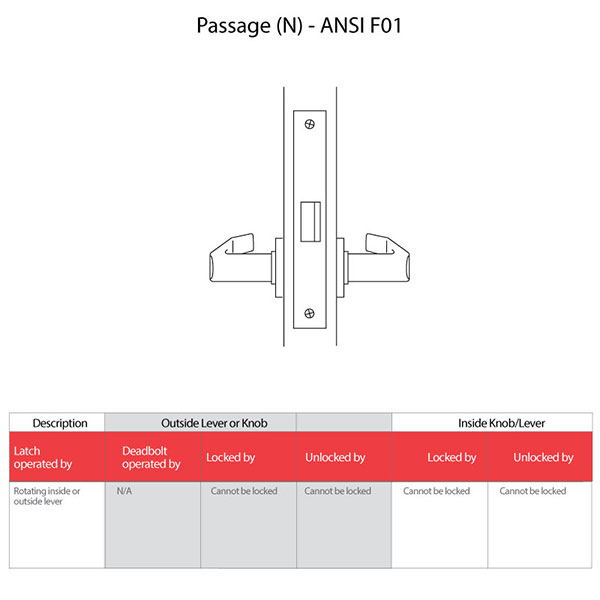

  • ANSI Function: F01 – (N) Passage
  • ADA Compliant, 3-Hour Fire-Rated

Available Options:

Clear

Best 45H0N Grade 1 Passage Mortise Lock, H Rose, Non-Keyed

When you want the toughest mechanical security for your building, you want the 40H Series from BEST.

With its advanced features, improved functionality and unique versatility, this durable mortise lock is reliable and flexible in any commercial or industrial setting.

Heavy duty in both protection and performance, the 40H is the ideal solution when strength and dependability are required. Free egress and overall security are never compromised. The 40H remains a low maintenance product that is easy to reconfigure and easy to install.

  • ANSI Function: F01 – (N) Passage
  • Field reversible handing
  • H Rose: Flat w/ round edge, 2-3/4″ diameter
  • S1 Standard strike: 4-7/8″ x 1-1/4″ x 3/32″, non-handed, curved lip, 1-1/4″ lip to center strike

made-in-usa-codes

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome

Lever Design

3 Lever (Solid Tube, Return), 14 Lever (Curved, Return), 15 Lever (Contour Angle, Return), 16 Lever (Curved, No Return)

Rose

H – Flat w/ round edge, 2 3/4” diameter

Lock Function

Passage

ANSI Function

F01

ANSI/BHMA Standard

ANSI/BHMA A156.13 Series1000—Grade 1

Usage

Heavy Duty

Backset

2-3/4"

Hand

Field Reverisble (Shipped as RH)

Fire Rating

UL/cUL listed up to 3 Hours

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Case

0.095” cold rolled steel, 5 7/8” H x 7/8” D x 4 1/16” W

Latchbolt

Solid stainless steel, 3/4” throw

Door Thickness

1-3/4"

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
