Advantage 784G Vision Lite Frame for 3/16″, 1/4″ or 5/16″ Glass, 1-3/4″ Thick Door

Usually Ships: 2-3 Business Days
  • 18-gauge galvanneal A40 steel frame
  • For 3/16″, 1/4″ or 5/16″ glass (not included)
  • For 1-3/4″ thick steel or wood doors

Available Options:

Clear

784G Lite Kit Frame for 1-3/4″ Thick Doors and 3/16″, 1/4″ or 5/16″ Glass

Closeout Sale – Available while supplies last (No returns allowed)

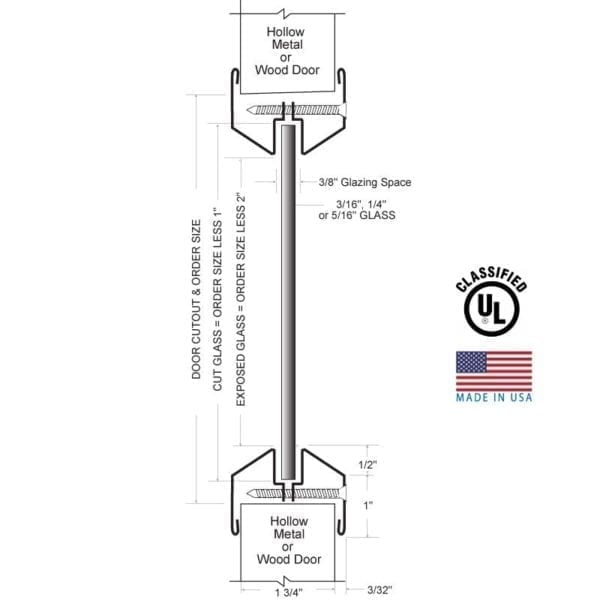

  • Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
  • Glass / Glazing Tape Not Included – glazing to be ordered separately from our glazing section. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.



Brand

Finish

Dark Bronze, Gray Primed

Order Size

5" x 35", 6" x 56", 6" x 60", 18" x 24", 18" x 60", 24" x 24"

Frame Profile

Low

Frame Construction

18 Ga. Galvanneal A40 steel

Frame Fasteners

#8 x 1" Flathead Phillips SMS – Included

Glass Thickness

3/16", 1/4" or 5/16"

Door Thickness

1-3/4"

Fire Rating

UL Certified – Up to 3 Hours in Metal Doors and 90 Minutes in Wood Doors

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
