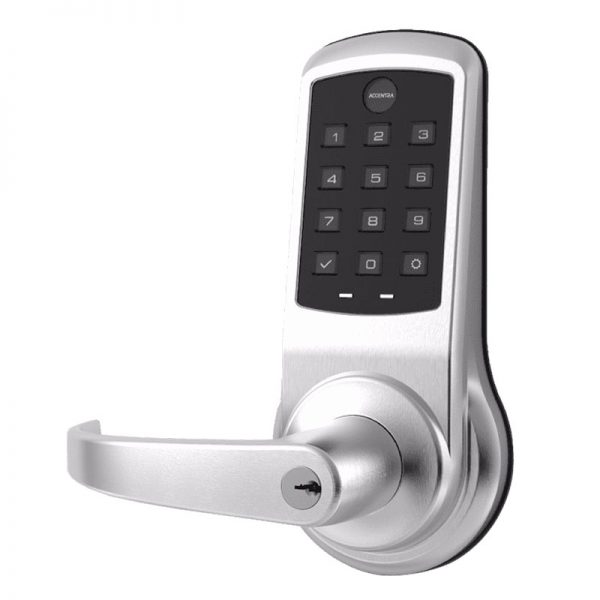

Accentra (Formerly Yale) PB-NTB613-NR nexTouch Push Button Keypad Cylindrical Lock, Pacific Beach Lever

Usually Ships: 30-45 Business Days
  • Heavy Duty Grade-1, standalone electronic lock
  • Pushbutton keypad with key override
  • Latchbolt retracted by lever outside with PIN code or by key

Available Options:

Clear

Accentra (formerly Yale) PB-NTB613-NR Generation 3 Nextouch Keypad Cylindrical Lock, Pushbutton Keypad, Pacific Beach Lever, Cylinder Override, Conventional Cylinder

nexTouch combines a modern look and innovative access control technology with an array of bold new features, offering an attractive access control solution to a range of facilities. With a heavy-duty design and ANSI/BHMA Grade 1 certification, nexTouch provides durable and reliable security from a brand trusted for over 170 years.

Formerly known as AU-NTB612-NR (Generation 2)
Formerly known as AU-NTB610-NR (Generation 1)

  • Easy Traffic Control: Engineered to provide a comprehensive, easy-to-use access control solution to protect your facility and personnel
  • Key-free Convenience: Reduces investment and maintenance costs
  • Strong and Reliable: ANSI/BHMA Grade 1 certification ensures long life and reliability
  • Weather-Resistant Gasket Seal: Lock is operational even in outdoor settings, in temperatures ranging from -40°F to 140°F (-40°C to 60°C) at 95% relative humidity
  • Keypad lockout feature: Deters tampering by disabling the keypad for a default of 180 seconds after five (5) successive failed attempts

codes

Brand

Finishes

605 Bright Brass, 613e Dark Oxidized Satin Bronze equivalent, 626 Satin Chrome, BSP Black Suede Powder Coat

Keyway

Accentra/Yale E1R (Para) Keyway, Schlage C Keyway

ANSI/BHMA Standard

Certified ANSI/BHMA Grade 1

Handing

Completely Reversible

Lock Function

Pushbutton Keypad

Fire Rating

UL Listed up to 3 Hours

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Power

Battery-operated, with low power indicator, or hard-wired (9 Volt external power supply) option. Blinking designation signals internal 4 AA alkaline batteries are low.

Reader Technology

NR: Keypad only, no radio

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face

Backset

2-3/4"

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys

Lever Design

PB (Pacific Beach)

Usage

Heavy Duty

Door Thickness

1-3/4"

Warranty

3 Year Limited

nexTouch® Keypad Access Cylindrical Lock Touchscreen and Push Button Installation and Programming Instructions
