Product Overview
Accentra (formerly Yale) D242 Blank Plate x Thumbturn Deadbolt, Grade 2, 2-3/4″ Backset
Accentra D Series deadbolts are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use, and installation are required.

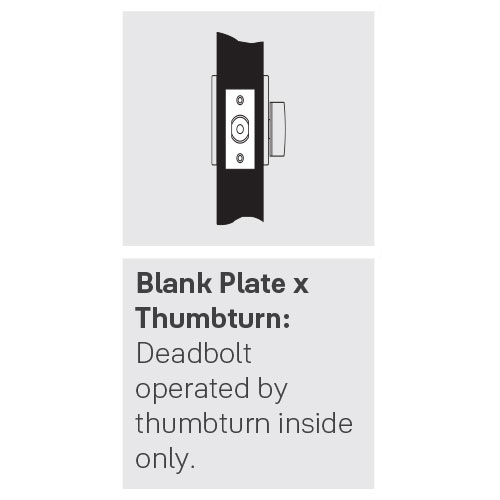

- Blank Plate x Thumbturn: Deadbolt operated by thumbturn inside only
- 1″ throw solid steel deadbolt with hardened, free spinning steel pin insert
- Non-handed functions are easily field reversible
- 2-3/4″ backset
- ANSI/BHMA Certified Grade 2
- Applications include hotel communicating doors
Fire Listings: D series deadbolts, when used in conjunction with the primary latching device, are uL – cuL listed for use with Classified steel covered composite or hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes. note: Any retrofit or other field modification to a fire-rated opening can potentially impact the fire rating of the opening, and Yale Locks & Hardware makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
Brand | |
---|---|
Deadbolt Type | Turn Inside x Blank Plate |
Finishes | 613e Dark Oxidized Satin Bronze equivalent, 626 Satin Chrome, BSP Black Suede Powder Coat |
Usage | Medium Duty |
ANSI Grade | Certified ANSI/BHMA A156.36 Grade 2 |
Backset | 2-3/4" |
Strike | 1-1/8” x 2-3/4“ square corner |
Bolt | 1" throw bolt, 1" x 2-1/4" square corner face plate. 1-1/8" latch front filler supplied standard |
Door Thickness | 1-3/8" to 1-3/4" |
