Accentra (Formerly Yale) 7210 Narrow Stile Surface Vertical Rod Exit Device

Usually Ships: 20-30 Business Days

Heavy Duty, ANSI/BHMA Grade-1 Certified
Surface mounted exit device
Exit only model (trim sold separately)

Available Options:

Finish

Length

Clear

Quantity:

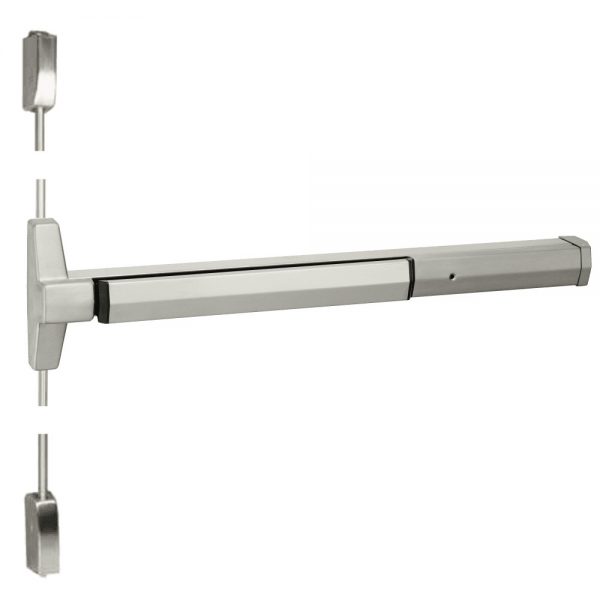

Accentra (formerly Yale) 7210 Narrow Stile Surface Vertical Rod Exit Device

The 7210 is a narrow stile surface vertical rod exit device to be used on narrow stile, aluminum and metal doors where two- point latching is desired.

Exit Only (Accentra Exit Device Trim Sold Separately)
Certified ANSI/BHMA A156.3, Grade 1
ISO 9001: Designed and manufactured under a certified ISO 9001 quality system

Features

Designed for narrow stile doors
Handed. Specify hand (field reversible)
Bottom deadbolt for secure latching
Fully adjustable roller strike

Applications

Pairs of narrow stile doors
Metal and aluminum doors
For panic-rated doors only

Brand	Accentra (Formerly Yale)
Finishes	630 Satin Stainless Steel
Length	36" (30" to 36" Door Width)
Includes Trim	No
Fire Rating	None
ANSI/BHMA Standard	Certified A156.3 Type 5, Grade 1
Usage	Heavy Duty
Device Type	Surface Rod Device
Door Height	up to 7'0"
Stile Type	Narrow
Minimum Stile Width	2"
Projections	3-1/4" active, 2-3/4" dogged
Dogging Feature	Hex key dogging standard on non-fired-rated devices
Latchbolt	Top: 3/4" (19mm) stainless steel throw, pullman-type with automatic deadlatching. Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing.
Strikes	Top: Roller type 791. Bottom: Flush mounted 790
Fasteners	Machine screws standard for panic hardware
Door Applications	1-3/4" Metal or Aluminum Doors
Buy American Act Compliance	Meets BAA – Buy American Act
