Product Overview

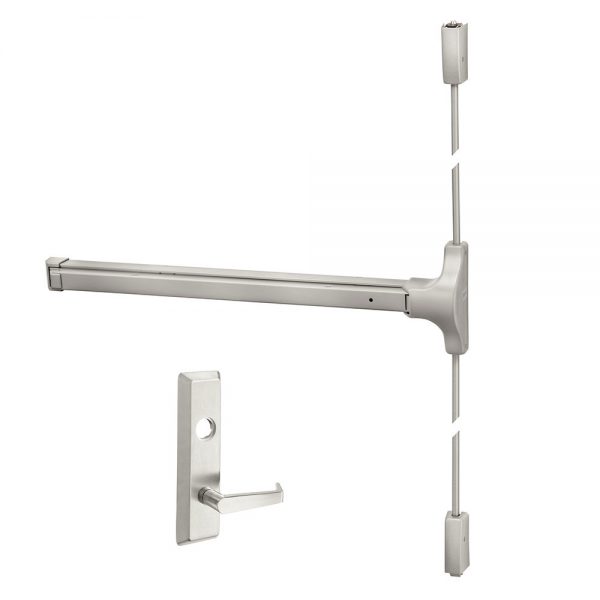

Accentra (formerly Yale) 2110/2110F Surface Vertical Rod Exit Device, AU-626F Classroom/Storeroom Lever Trim
The 2110(F) is a surface vertical rod exit device to be used on metal, wood, or composite pairs of doors where two-point latching is desired.
- ANSI Function 08 (Classroom) or 09 (Storeroom): Ships as 08 Classroom – 09 function achieved with single trim modification at installation
- Non-handed for easy installation
- Designed for wide stile doors
- Positive action linkage on a deadlocking top Pullman bolt
- Simultaneous direct pull bottom deadbolt
- When unlatched, device keeps both bolts retracted until door is shut
UL/cUL Listed:
- FVSR/FVSR7 – Panic hardware
- GXHX/GXHX7 – Fire exit hardware (F) (up to 4′ x 8′ single, 8′ x 8′ pairs, 3 hr.)
AU-626F Lever Trim
- ANSI Function: 08 or 09 (cylinder controls lever)
- 08 Function: Entrance by lever. Key locks or unlocks lever.
- 09 Function: Entrance by lever only when released by key. Key removable only when locked.
- Requires rim cylinder (sold separately)
- AU (Agusta) lever design
- Trim through-bolts to exit device for strength
- Beveled sides improve attack resistance
- Solid forged escutcheon and Free-Wheeling trim resists vandalism and abuse
- Field reversible – ships as RHR
- Dimensions: 3″ x 10-1/4″ x 13/16″
- Projection: 2-5/8″
Brand | |
---|---|
Finishes | 689 Aluminum with 630 Satin Stainless Steel Lever, 630 Satin Stainless Steel |
Device Type | Surface Rod Device |
ANSI/BHMA Standard | Certified ANSI/BHMA A156.3, Grade 1 |
Usage | Medium Duty |
Includes Trim | Yes |
Trim | 626F |
Lever Design | AU (Augusta) |
Stile Type | Wide (Standard) |
Door Width Range | 36" Device: 30" to 36" – 48" Device: 42" to 48" |
Door Height | Up to 7'0" Standard (extension top rod for 8'0" doors optional) |
Fire Rating | 2110: Non-Rated – 2110F: Fire-Rated up to 3 Hours |
Handing | Handed – Field Reversible |
Minimum Stile Width | 4-1/2" |
Projections | 2-1/2" active, 1-3/4" dogged |
Strike | Top: Roller type 791. Bottom: Flush mounted 790 |
Dogging Feature | Hex key dogging standard on non-fired-rated devices |
Fasteners | Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware |
Door Applications | 1-3/4" Metal, wood or composite doors |
Warranty | 3 Year |
