1810xAU426Fx689

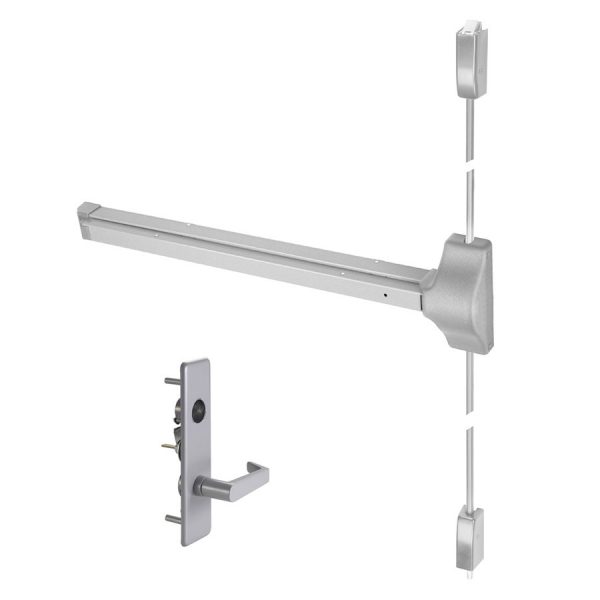

Accentra (Formerly Yale) 1810(F) x AU426F Surface Vertical Rod Exit Device with Classroom/Storeroom Lever Trim

Usually Ships: 1-2 Business Days
  • ANSI/BHMA Grade-1 Certified
  • ANSI Function 08 (classroom) or 09 (storeroom)
  • Includes AU-426F lever trim (cylinder sold separately)

Available Options:

  • Total

Product Overview

Accentra (formerly Yale) 1800 Series Grade 1 Flat Bar Exit Device, Surface Vertical Rod, 7ft Height, Includes AU426F Lever Trim

The 1810(F) is a surface vertical rod exit device to be used on metal, wood, or composite pairs of doors where two-point latching is desired.

  • ANSI Function 08 (Classroom) or 09 (Storeroom): Ships as 08 Classroom – 09 function achieved with single trim modification at installation
  • Non-handed for easy installation
  • Designed for wide stile and flush doors
  • Positive action linkage on a deadlocking top Pullman bolt
  • Simultaneous direct pull bottom deadbolt
  • When unlatched, device keeps both bolts retracted until door is shut

UL/cUL Listed:

  • FVSR/FVSR7 – Panic hardware
  • GXHX/GXHX7 – Fire exit hardware (F) (up to 4′ x 8′ single, 8′ x 8′ pairs, 3 hr.)

AU-426F Lever Trim

  • ANSI Function: 08 or 09 (cylinder controls lever)
  • 08 Function: Entrance by lever. Key locks or unlocks lever.
  • 09 Function: Entrance by lever only when released by key. Key removable only when locked.
  • Requires rim cylinder (sold separately)
  • AU (Agusta) lever design
  • Field reversible – ships as RHR
  • Dimensions: 2-1/2″ x 9-1/2″ x 1/4″
Brand

Finishes

689 Aluminum (Powder Coated), 695 Dark Bronze (Powder Coated)
ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1
Usage

Medium Duty
Device Type

Surface Rod Device
Includes Trim

Yes
Trim

426F
Lever Design

AU (Augusta)
Cylinder

Requires rim cylinder (sold separately)
Stile Type

Wide (Standard)
Door Height

Up to 7'0" Standard (extension top rod for 8'0" doors optional)
Fire Rating

1810: Non-Rated – 1810F: Fire-Rated up to 3 Hours
Handing

Non Handed – Completely Reversible
Minimum Stile Width

4-1/2"
Projections

2-1/2" active, 1-3/4" dogged
Strike

Top: Roller type 791. Bottom: Flush mounted 790
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Fasteners

Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
Door Applications

1-3/4" Metal, wood or composite doors
Warranty

3 Year
