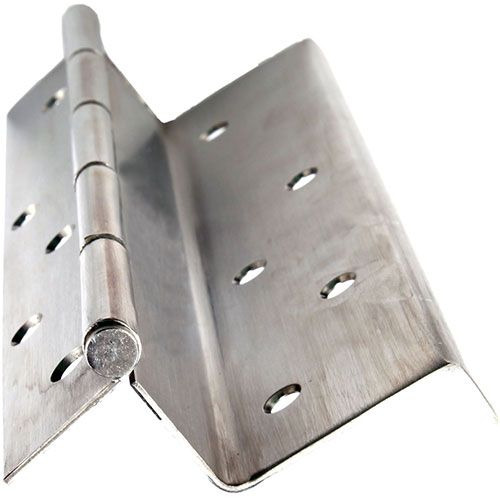

ABH A511 Full Mortise Stainless Steel Pin & Barrel Continuous Hinge, Swing Clear with Edge Guard

Usually Ships: 10-20 Business Days
  • No door inset, flush mount, swing clear
  • Door edge guard on stop side only
  • Supports weights up to 600lbs

Available Options:

Clear

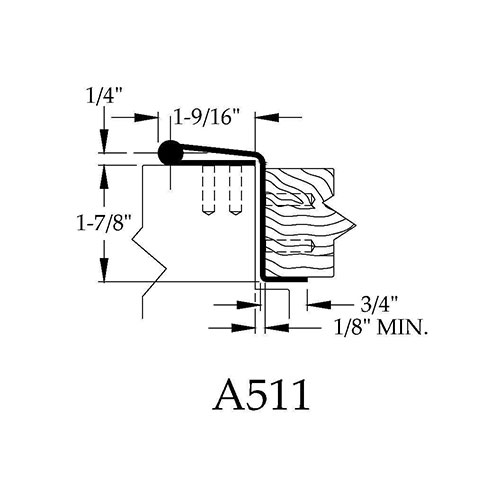

ABH A511 Stainless Steel Pin & Barrel Continuous Hinge, Full Mortise, Swing Clear w/ Edge Guard

  • Full concealed, heavy duty
  • No door inset, flush mount
  • Swing clear
  • Door edge guard on stop side only
  • 48” door width maximum
  • 600 lbs. door weight maximum
  • Fasteners: 10-24 x 7/8″ undercut, self-drilling, thread-forming tek machine screws, stainless steel and #10 x 1-1/4” undercut wood screws, stainless steel
  • Lengths: 78-3/4″, 83-1/8″, 85”, and *95”
  • Finishes: US32D Satin Stainless Steel
  • Fire Rating doors, based on the following
    • 20 minutes – wood doors
    • 90 minutes – hollow metal and composite
    • 3 hours – hollow metal doors

*Oversize handling fee applies (added at checkout)

Brand

Finish

Stainless Steel

Length

79" (for 6'8" door), 83" (for 7'0" door), 85" (for 7'2" Door), 95" (for 8'0" door)

Material

Stainless Steel

Usage

Heavy Duty

ANSI/BHMA Standard

ANSI/BHMA A156.26-2017 Certified

Fire Rating

UL and cUL Listed – up to 3 Hours

Continuous Hinge Type

Full Mortise (Concealed), Swing Clear

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
