ABH A505 Full Mortise Stainless Steel Pin & Barrel Continuous Hinge with Edge Guards

Usually Ships: 10-20 Business Days
  • No door inset, flush mount
  • Door edge guard on both faces of door
  • Supports weights up to 600lbs

Available Options:
Clear

Product Overview

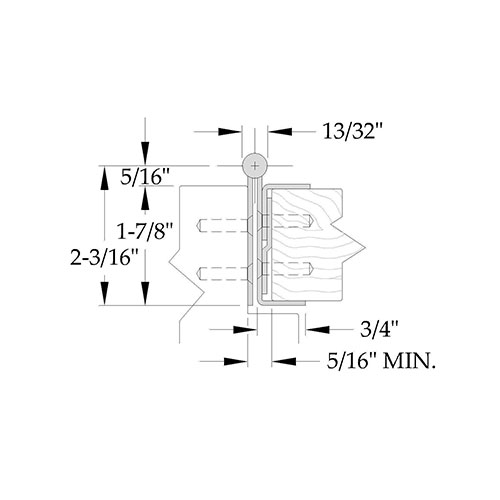

ABH A505 Stainless Steel Pin & Barrel Continuous Hinge, Full Mortise, Dual Edge Guards

  • Full concealed, heavy duty
  • No door inset, flush mount
  • Door edge guard on both faces of door
  • 48” door width maximum
  • 600 lbs. door weight maximum
  • Fasteners: 10-24 x 7/8″ undercut, self-drilling, thread-forming tek machine screws, stainless steel and #10 x 1-1/4” undercut wood screws, stainless steel
  • Lengths: 78-3/4″, 83-1/8″, 85”, and *95”
  • Finishes: US32D Satin Stainless Steel
  • Fire Rating doors, based on the following
    • 20 minutes – wood doors
    • 90 minutes – hollow metal and composite
    • 3 hours – hollow metal doors

*Oversize handling fee applies (added at checkout)

Brand

Finish

Stainless Steel
Length

79" (for 6'8" door), 83" (for 7'0" door), 85" (for 7'2" Door), 95" (for 8'0" door)
Material

Stainless Steel
Usage

Heavy Duty
ANSI/BHMA Standard

ANSI/BHMA A156.26-2017 Certified
Fire Rating

UL and cUL Listed – up to 3 Hours
Continuous Hinge Type

Full Mortise (Concealed)
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
