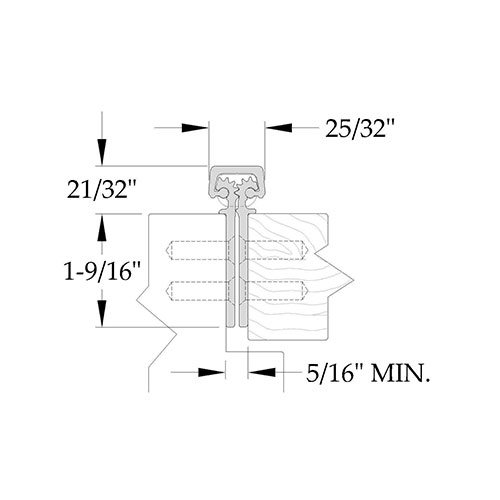

ABH A110HD / A110LL Heavy Duty Full Mortise Concealed Continuous Geared Hinge

Usually Ships: 3-5 Business Days
  • Flush mounted (no door inset)
  • Fire-rated up to 90-minutes
  • Supports weights up to 450lbs (LL model 1000 lbs)

Available Options:

Clear

ABH A110HD / A110LL Aluminum Continuous Gear Hinges Full Mortise

  • BHMA Grade 1
  • Full Concealed, Heavy Duty
  • No Door Inset, Flush Mount
  • 48″ door width maximum
  • 450 lbs. door weight maximum
  • “LL” model for doors up to 1,000 lbs (lead-lined staggered hole pattern)
  • Fasteners: 12-24 X 3/4″ undercut self drilling, thread forming tek machine screws
  • Standard Lengths: 79″, 83″, 85″, *95″
  • Approved for use on metal swinging type fire doors rated up to and including 90 minutes
  • Approved for use on wood swinging type fire doors rated up to and including 60 minutes

*Oversize handling fee applies (added at checkout)

Brand

Finish

Anodized Aluminum, Black, Dark Bronze

Length

79" (for 6'8" door), 83" (for 7'0" door), 85" (for 7'2" Door), 95" (for 8'0" door)

Material

Aluminum

ANSI/BHMA Standard

ANSI/BHMA A156.26-2017 Certified

Fire Rating

Approved for use on metal swinging type fire doors rated up to and including 90 minutes, Wood doors up to 60 minutes

Continuous Hinge Type

Full Mortise (Concealed)

Usage

Heavy Duty

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
