ABH 019 Intermediate Pivot

Usually Ships: 3-5 Business Days
  • Mortises into side jamb and hinge edge of door
  • Helps maintain door alignment
  • UL listed for use on 3-hour fire rated doors

Available Options:

Clear

Product Overview

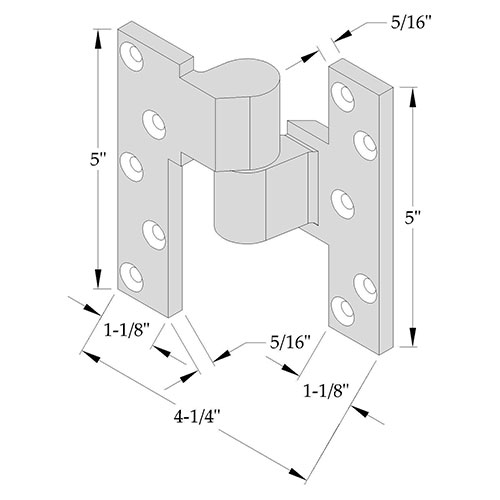

ABH 019 Intermediate Pivot – 3/4″ Offset

  • Doors ranging from 60″ tall should use one intermediate pivot. An additional intermediate pivot should be used for each additional 30″ in door height. (ie, 90″ tall door should use two intermediate pivots)
  • Mortises into side jamb and hinge edge of door
  • Handed – Specify LH or RH
  • For use with with 3/4″ offset pivot sets
  • Helps maintain door alignment
  • UL Listed for use on 3-hour fire rated doors – Standard
  • Heavy duty stainless steel needle bearings
  • Stainless steel base material
  • Average weight per unit = 2.5 lbs
Brand

Hand

LH (Left Hand), RH (Right Hand)
Compliance

ANSI C07321 & C07371
Usage

Heavy Duty
Pivot Type

Intermediate Pivots
Finishes

US32D (630) Satin Stainless Steel
