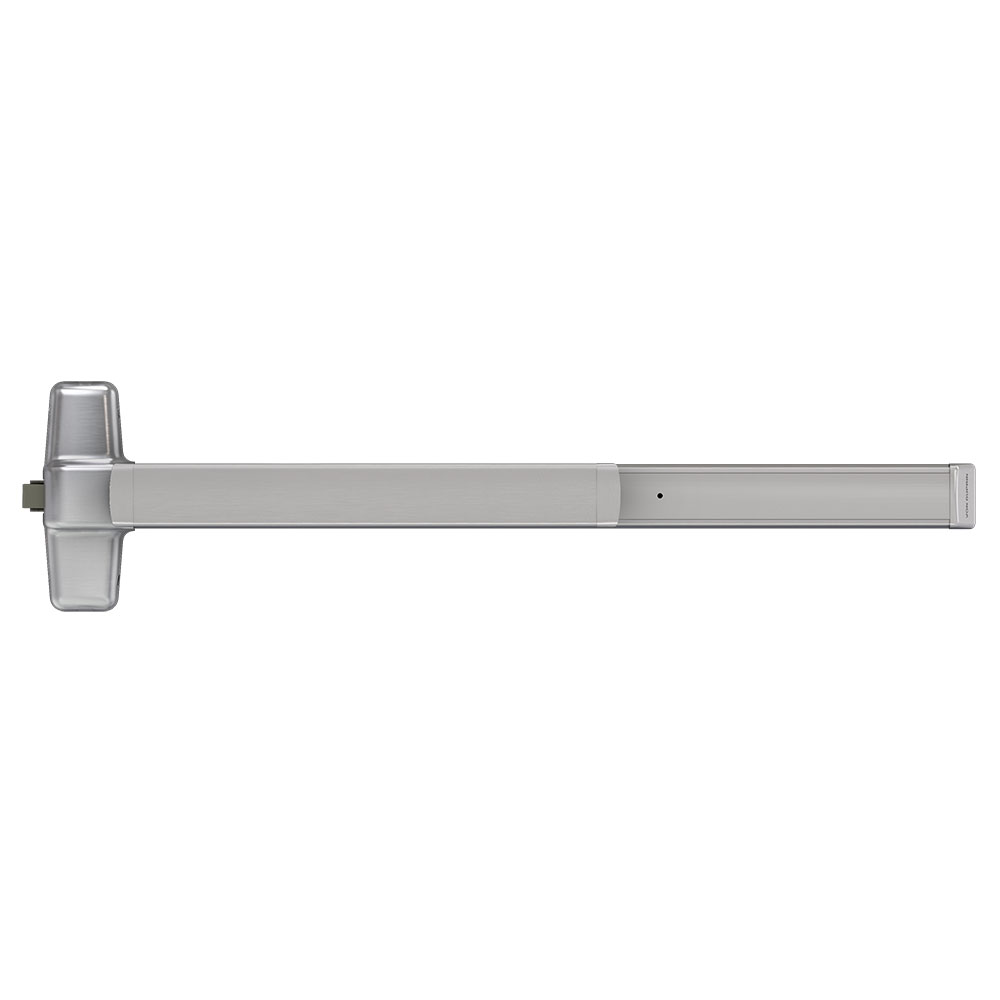

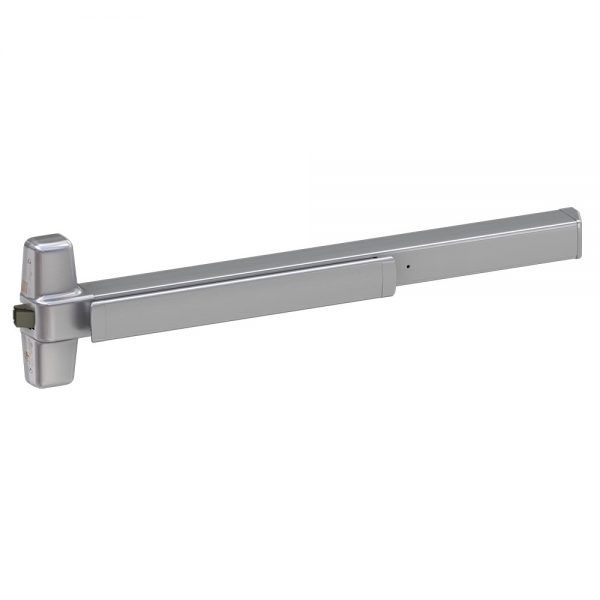

Von Duprin OUT98EO Outdoor Defense Panic Rim Exit Device

Von Duprin OUT98EO Grade 1 Rim Exit Bar, Wide Stile Pushpad, Exit Only, Less Trim, Hex Dogging, Outdoor Defense

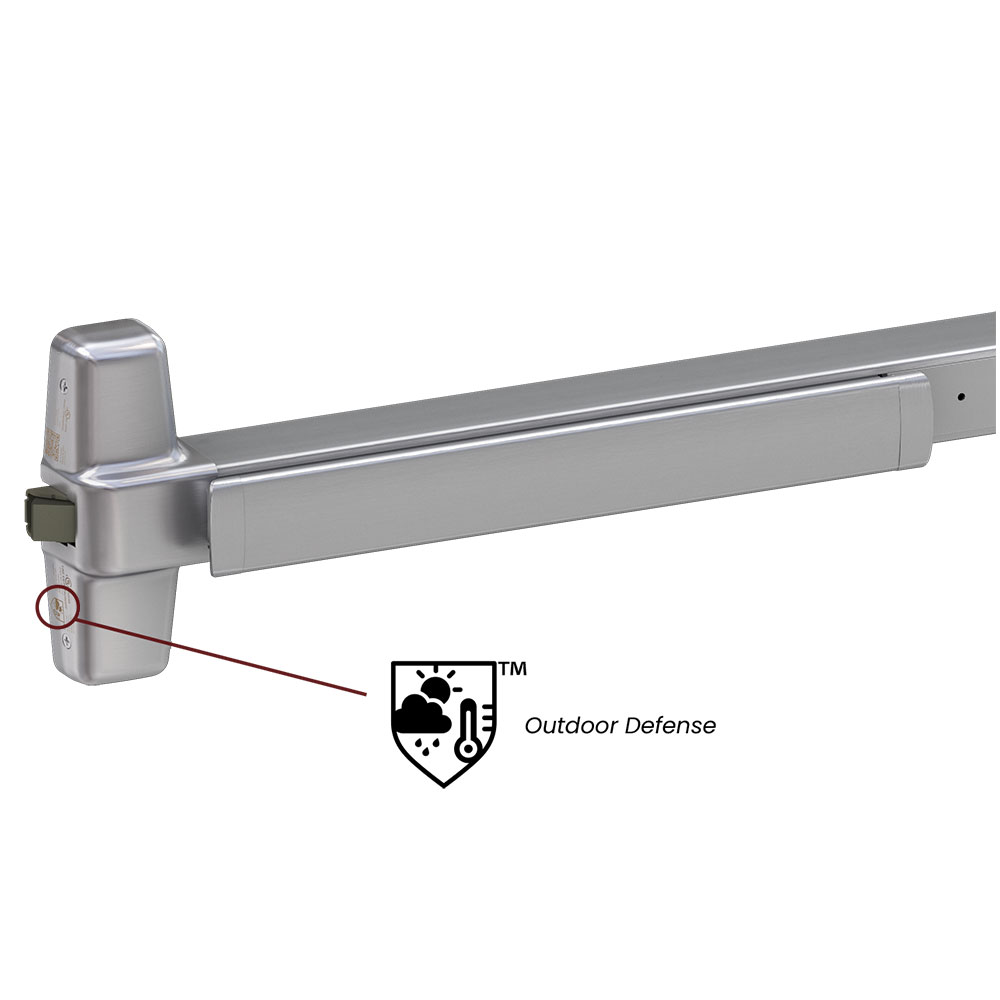

Outdoor Defense (OUT) option for Von Duprin exit devices are designed to safeguard against moisture, temperature variations, and corrosion in exterior applications. This option is engineered to protect internal components and assemblies that are critical to exit device function and long life from moisture and the elements, as well as protect electronic features such as switches, latch retraction, delayed/controlled egress and alarm kits. Outdoor Defense products are designed to perform in outdoor applications such as courtyards, perimeter security, rooftops, and patios.

DESIGNED FOR WEATHER PROTECTION

Outdoor Defense products are warranted for environments within the parameters of the products testing conditions and elements. You can have peace of mind knowing that the exit device will function correctly when needed most.

In the absence of an industry approved certification for outdoor exit door hardware, Outdoor Defense products endure a rigorous series of tests (temperature, moisture, corrosion, and dust) to confirm the product functions as intended in outdoor applications and are warranted within these testing parameters.

Von Duprin Outdoor Defense products are tested to simulate environments with driving rain, high and low temperatures, and dust and debris.

• EO = Exit Only, ANSI Function 01 (98/99 Series Outside Trim Sold Separately)
• ANSI function 01, exit only (trim sold separately)
• Deadlocking Latchbolt Standard
• Stock Sizes: 3′ and 4′ – Cut to size in the field
• 299 Roller Strike Standard
• ANSI/BHMA A156.3 Grade 1 Certified
• Option: WH – Weep holes – Weep holes are ideal for devices that are mounted to exterior doors that can be exposed to rain and other elements. Hole spacing on 3′ and 4′ devices are every 6″ on center. A 3 foot device will have 5 holes, a 4 foot device will have 7 holes.

Product Testing Elements

• Temperature Range: -31°F (-35°C) to 151°F (66°C)
  ॰ Evaluated per UL294 Section 81 Variable Ambient Test
  ॰ Evaluated per UL1034 Section 34.2 Variable Ambient Test
• Moisture Resistance: Rain Tested at 4.8 gallons per minute
  ॰ Per UL294 section 79
  ॰ Per UL1034 section 53
• Corrosion Resistance: Salt Fog Tested per
  ॰ UL294 Section 83.2 Salt Spray (5% salt concentration)
  ॰ UL1034 Section 52 Salt Spray Corrosion Test (20% salt concentration)
• Dust Resistance: Dust Tested per
  ॰ UL294 Section 80 Dust Test
  ॰ UL1034 Section 54 Dust Test
