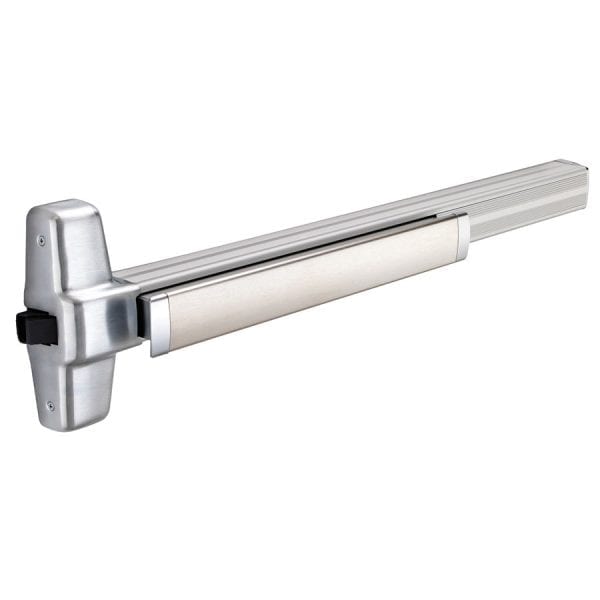

Von Duprin HH99EO Hurricane Rated (Wind and Impact) Panic Rim Exit Device

Von Duprin HH99EO Grade-1 Hurricane Rated Rim Exit Device, Wide Stile Pushpad, Panic Rated, Exit Only, Hex Dogging

Hurricane resistant openings are designed to withstand storm conditions for long periods of time while maintaining the structural and functional integrity of the opening. The primary purpose is to not only prevent debris and wind from penetrating the assembly but also to maintain functionality after the storm

Florida was the first state to develop hurricane codes. As a result, the requirements set by the Florida Building Code (FBC) may be adopted by jurisdictions in other states where hurricane protection is a necessity. The appropriate hurricane solution depends on the specific requirements for the application.

BC TAS 201, 202, 203 [Wind and Impact zone (HVHZ) ASTM E1886, ASTM E1996, ASTM E330]
Exterior door assemblies certified for installation within the Florida High Velocity Hurricane Zone (coastal region of the state) are subject to specific tests for both wind speed and flying debris called out in the TAS protocols of the Florida Building Code. Impact, structural, and cyclic tests must be conducted on full assemblies (e.g., exit device and door) as part of the standard.

Disclaimer: Hurricane rated exit devices for use when paired with Allegion approved doors.

• EO = Exit Only, ANSI Function 01 (98/99 Series Outside Trim Sold Separately)
• For use with single doors or double doors with mullions
• Deadlocking latchbolt standard
• Stock Sizes: 3′ and 4′ – can be cut to size in the field
• 299F Roller Strike Standard
• ANSI/BHMA Certified, Grade-1
• UL listed for panic exit hardware
