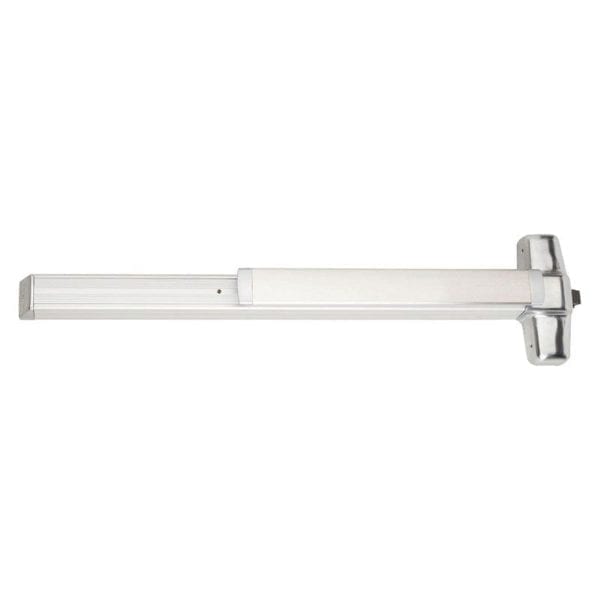

Von Duprin AX99EO ADA Accessible Rim Exit Device

Usually Ships: 1-2 Days
  • Heavy Duty – Grade-1 – ANSI/BHMA Certified – Made in USA
  • Certified to Meet California Code – 5 lb. Max. Operating Force
  • Available in 3’ and 4’ Lengths

Available Options:

  • Dark Bronze
  • Satin Chrome
Clear

The AX device is a UL certified exit device designed to meet the progressive requirements of the California Building Code for accessible openings. This device meets the 5 lbs of operating force requirement called for in chapter 11B-309.4. The AX device also exceeds ANSI/BHMA requirements. All AX devices will be shipped with a new UL label clearly stating “Meets California building Code (2013) Sec. 11B-309.4” and an “AX” identifier label on device center case.

The AX Series is subject to Von Duprin’s standard testing to ensure durability and functionality. The AX Series is the first UL-certified exit device to meet the new California Building Code requirements for accessible openings. This certification will help mitigate the risk of project delays, liability, and lost time and money in having to re-specify openings.

  • EO = Exit Only, ANSI Function 01 (98/99 Series Outside Trim Sold Separately)
  • Deadlocking Latchbolt Standard
  • 299 Roller Strike Standard
  • Stock Sizes: 3′ and 4′ – Cut to size in field

Brand

Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)

Finishes

313 Duranodic Dark Bronze, US26D (626) Satin Chrome

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards

Fire Rating

Non-Fire-Rated

ADA Compliance

UL Certified to meet new 5 lb. maximum operating force requirement

Hand

Non-handed

Latchbolt

Deadlatching, 3/4" throw

Dogging Feature

Half turn hex dogging standard

Stile Type

Wide (Standard)

Strike

299 roller strike standard

Center Case

8" x 2-3/4" x 2-3/8"

Projections

Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"

Fasteners

Includes screws for metal and wood doors

Door Applications

1-3/4″ Thick Doors

Usage

Heavy Duty
