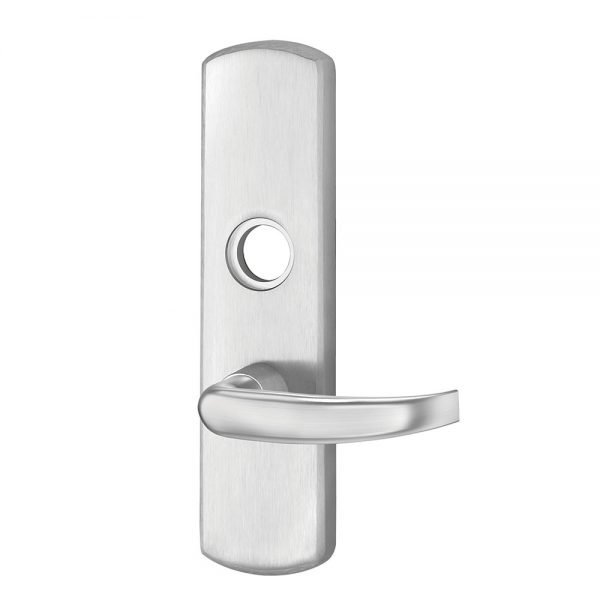

Von Duprin 996L-R/V-17 Breakaway Lever Trim for 98/99 Series Exit Device

Usually Ships: 1-2 Business Days
  • For use with 98/99 Series rim or vertical rod device
  • Key locks/unlocks lever
  • Rim cylinder required (sold separately)

Available Options:

Clear

Product Overview

Von Duprin 996L Lever Trim, Classroom Function, Rim/Vertical Rod Devices, 17 Lever Style

The 996L Breakaway trim has become the standard lever trim offering on the 98L/99L Series devices. The Breakaway design is especially effective in areas where vandalism to door hardware is a problem. The design intent is to discourage costly repairs from becoming necessary.

  • ANSI Function: 08
  • Escutcheon plate size: 2-3/4″ x 10-3/4″ x 27/32″
  • Projection: 2-7/8″
  • #17 lever style
  • Cylinder must be ordered separately – Requires 1-1/8″ Rim Cylinder

Brand

Function

Entry / Classroom
Usage

Heavy Duty
Lever Design

17
Cylinder

1-1/8" Rim Cylinder (Sold Separately)
Hand

Field reversible-shipped RHR
ANSI Grade

ANSI Grade 1
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
