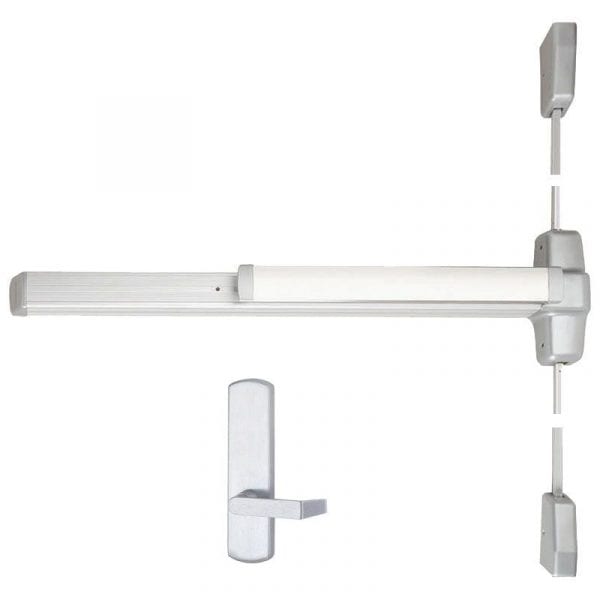

Von Duprin 9927L-BE Surface Vertical Rod Exit Device with Passage Lever

Usually Ships: 1-2 Business Days
  • Heavy Duty – ANSI/BHMA Grade-1 -Made in USA
  • ANSI Function 14 (Lever Always Operable)
  • Includes 996L-BE-06 Lever

Available Options:

Clear

The 9927 Series has been certified to the highest industry standards and are used in schools, hospitals, and government buildings. 9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2014 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9927-F model is fire-rated for pairs of doors up to 8′ x 10′ – UL listed for fire exit hardware.

  • Standard Sizes: 3′ x 7′, 4′ x 7′ (extension rod available for door up to 10’0″)
  • Designed for high use and abuse in institutional applications

996L-BE Blank Escutcheon Lever Trim

  • ANSI Function: 14
  • Escutcheon plate size: 2-3/4″ x 10-3/4″ x 27/32″
  • Projection: 2-7/8″
  • #06 lever style furnished standard

Brand

Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)

Vertical Rods

Rods Accommodate Doors up to 7'0" – Cut to Specification in Field (top extension rod available)

Trim

996L-BE (Passage – Lever Always Operable, No Cylinder)

Hand

Device Non-Handed – Lever Ships as RHR (Field Reversible)

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards

Usage

Heavy Duty

Fire Rating

9927L-BE: Non-Fire-Rated – 9927L-BE-F: UL Listed A or B label Fire-Rated (3 Hours)

Latchbolt

Deadlocking anti-friction top & bottom bolt, 5/8" throw

Strikes

9927: 299 Top Strike, 304L Bottom Strike – 248L4 Bottom strike for use with flat threshold – 9927F: 299F Top Strike, 304L Bottom Strike

Fasteners

Includes screws for metal and wood doors

Projections

Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"

Center Case

8" x 2-3/4" x 2-3/8"

Stile Type

Wide (Standard)

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Device Type

Surface Rod Device

Finishes

313 Duranodic Dark Bronze, US19 (315) Flat Black, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum

Door Applications

1-3/4″ Thick Doors

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
