Von Duprin 6223 Electric Strike For use with Cylindrical or Mortise Locks on Double Doors

Usually Ships: 1-2 Business Days
  • For use with cylindrical and mortise locks on double doors (closed back)
  • For interior or exterior hollow metal or aluminum frames
  • UL 1034 listed for burglary-resistant electric door strikes

Available Options:

Clear

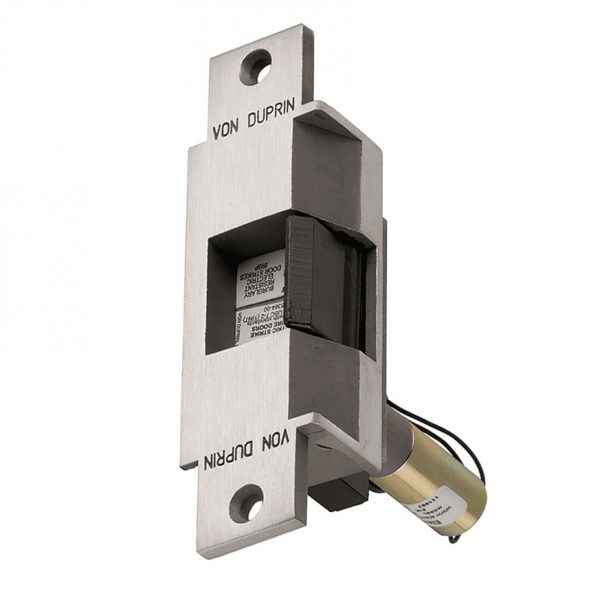

Von Duprin 6223 Electric Strike, 6″ x 1-1/4″ Faceplate, Electric Strike For use with Cylindrical or Mortise Locks on Double Doors (Closed Back), Satin Stainless Steel

Von Duprin electric strikes are known for their reliability, durability, and security. The 6223 strikes are made to withstand abuse and are designed to be used with mortise and cylindrical devices on pairs doors. Their stainless steel construction with integrated faceplate and smooth keeper movement help assure durability and reliability.

  • Closed back electric strike for use on 1-3/4″ (44 mm) thick double door applications
  • 4-3/4″ (120 mm) minimum stile required
  • 24 VDC standard, 12 VDC option
  • Suitable for interior and exterior doors
  • Heavy-duty stainless steel construction
  • Accepts 3/4″ Throw Latchbolt
  • Two-piece plug connectors are furnished for ease of installation and removal during strike servicing
  • Endurance 1,000,000 cycles
  • UL 10C 3-hour fire-rated (fail secure only) – When pair door has inactive leaf
  • UL 1034 listed for burglary-resistant electric door strikes
  • Static strength: 1500 lbs
  • Dynamic strength: 70 ft-lbs
  • UL 294 listed for access control system
  • Retrofits: VD 3091, VD 3092
  • FSE (Fail-Secure Standard): Requires power to be applied to unlock the strike lip. On loss of power, the strike lip is locked. Fire-rated.

Options

  • FS (Fail-Safe): Requires power to be applied to lock the strike lip. On loss of power, the strike lip is unlocked. Non-fire-rated.
  • DS: Monitors latch bolt and lock status. DS switches rated for 24 VDC at .050-2.0 amps.

Brand

Finishes

630 Satin Stainless Steel

ANSI/BHMA Standard

ANSI/BHMA 156.31, Grade 1

Usage

Heavy Duty

Fire Rating

UL 10C 3-hour fire-rated (fail secure only)

Part Type

Complete Electric Strike

Lock Type Compatibility

Cylindrical Lock, Mortise Lock

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
