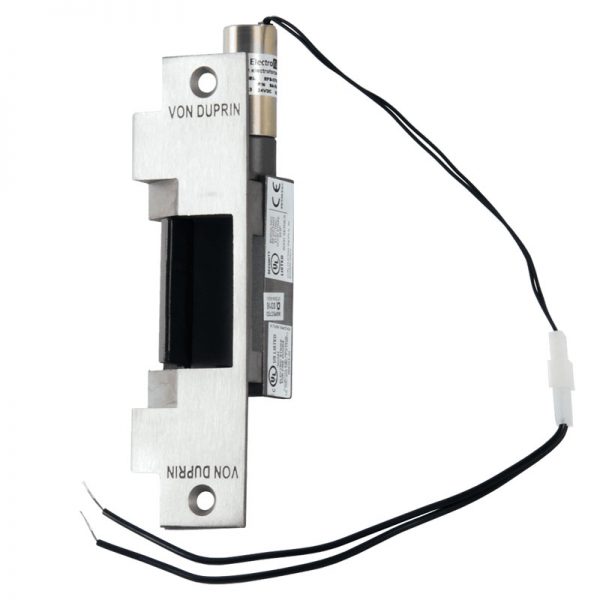

Von Duprin 6212 Electric Strike for Cylindrical or Mortise Locks

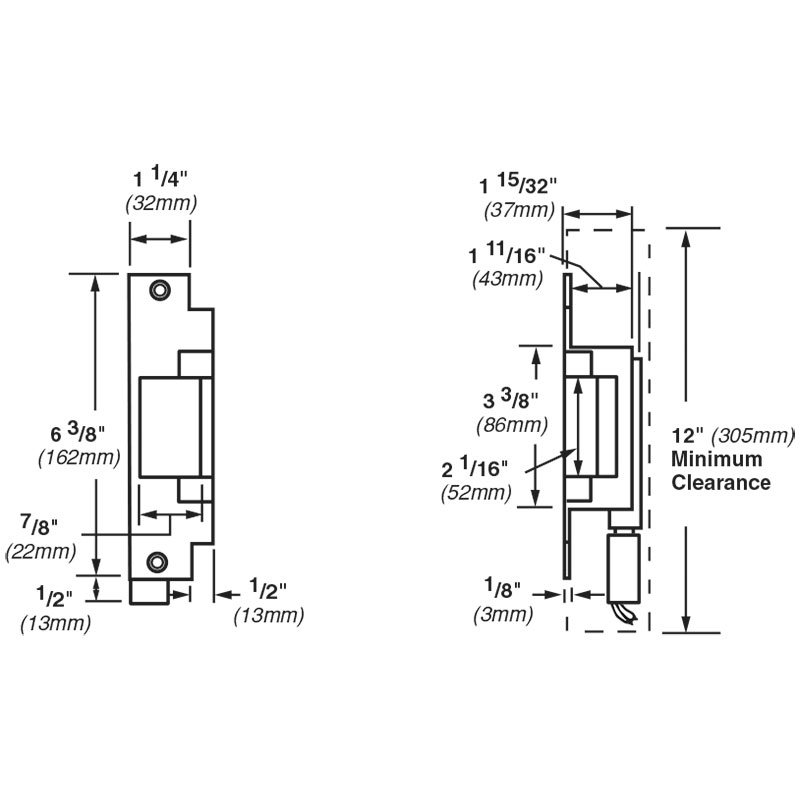

Von Duprin 6212 Electric Strike, 6-3/8″ x 1-1/4″ Faceplate, For use with Cylindrical or Mortise Locks Without Deadbolt, Satin Stainless Steel

Von Duprin electric strikes are known for their reliability, durability, and security. The 6212 strikes are made to withstand abuse and are designed to be used with mortise and cylindrical devices on single doors. Their stainless steel construction with integrated faceplate and smooth keeper movement help assure durability and reliability.

• 24 VDC standard, 12 VDC option
• Suitable for interior and exterior doors
• Heavy-duty stainless steel construction
• Accepts 3/4″ Throw Latchbolt
• Two-piece plug connectors are furnished for ease of installation and removal during strike servicing
• Endurance 1,000,000 cycles
• UL 10C 3-hour fire-rated (fail secure only)
• UL 1034 listed for burglary-resistant electric door strikes
• Static strength: 1500 lbs
• Dynamic strength: 70 ft-lbs
• UL 294 listed for access control system
• Retrofits: VD 3146
• Fits modified ANSI 115.2 cutout. Designed to replace Von Duprin 3146.
• FSE (Fail-Secure Standard): Requires power to be applied to unlock the strike lip. On loss of power, the strike lip is locked. Fire-rated.

Options

• FS (Fail-Safe): Requires power to be applied to lock the strike lip. On loss of power, the strike lip is unlocked. Non-fire-rated.
• DS: Monitors latch bolt and lock status. DS switches rated for 24 VDC at .050-2.0 amps.
