Product Overview

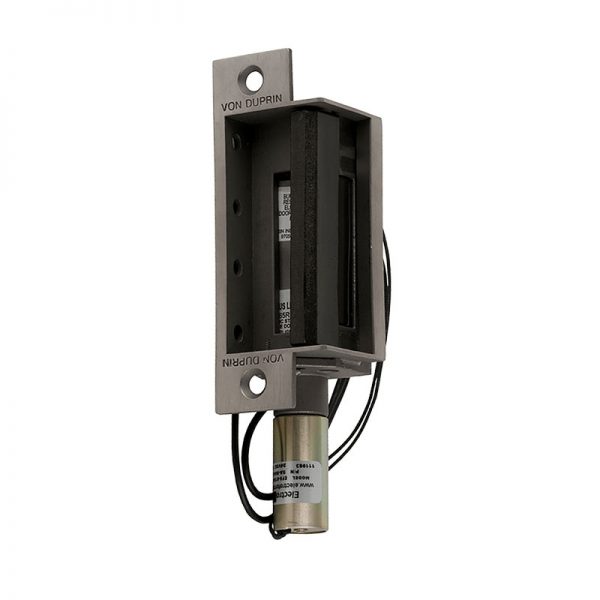

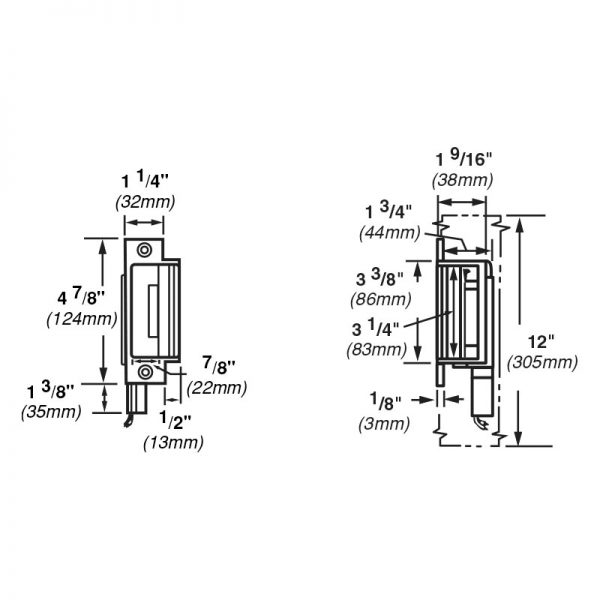

Von Duprin 6210 Electric Strike, 4-7/8″ x 1-1/4″ Faceplate, For use Mortise Locks Without Deadbolt, Satin Stainless Steel
Von Duprin electric strikes are known for their reliability, durability, and security. The 6200 Series strikes are made to withstand abuse. Their stainless steel construction with integrated faceplate and smooth keeper movement help assure durability and reliability.
- For use in ANSI prep at standard height. Strike pocket inserts are provided to accommodate different manufacturers deadlocking trigger locations.
- 24 VDC standard, 12 VDC option
- Suitable for interior and exterior doors
- Heavy-duty stainless steel construction
- Accepts 3/4″ Throw Latchbolt
- Two-piece plug connectors are furnished for ease of installation and removal during strike servicing
- Endurance 1,000,000 cycles
- UL 10C 3-hour fire-rated (fail secure only)
- UL 1034 listed for burglary-resistant electric door strikes
- Static strength: 1500 lbs
- Dynamic strength: 70 ft-lbs
- UL 294 listed for access control system
- FSE (Fail-Secure Standard): Requires power to be applied to unlock the strike lip. On loss of power, the strike lip is locked. Fire-rated.
Options
- FS (Fail-Safe): Requires power to be applied to lock the strike lip. On loss of power, the strike lip is unlocked. Non-fire-rated.
- DS: Monitors latch bolt and lock status. DS switches rated for 24 VDC at .050-2.0 amps.
Brand | |
---|---|
Finishes | 630 Satin Stainless Steel |
ANSI/BHMA Standard | ANSI/BHMA 156.31, Grade 1 |
Usage | Heavy Duty |
Fire Rating | UL 10C 3-hour fire-rated (fail secure only) |
Part Type | Complete Electric Strike |
Lock Type Compatibility | Mortise Lock |
Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
