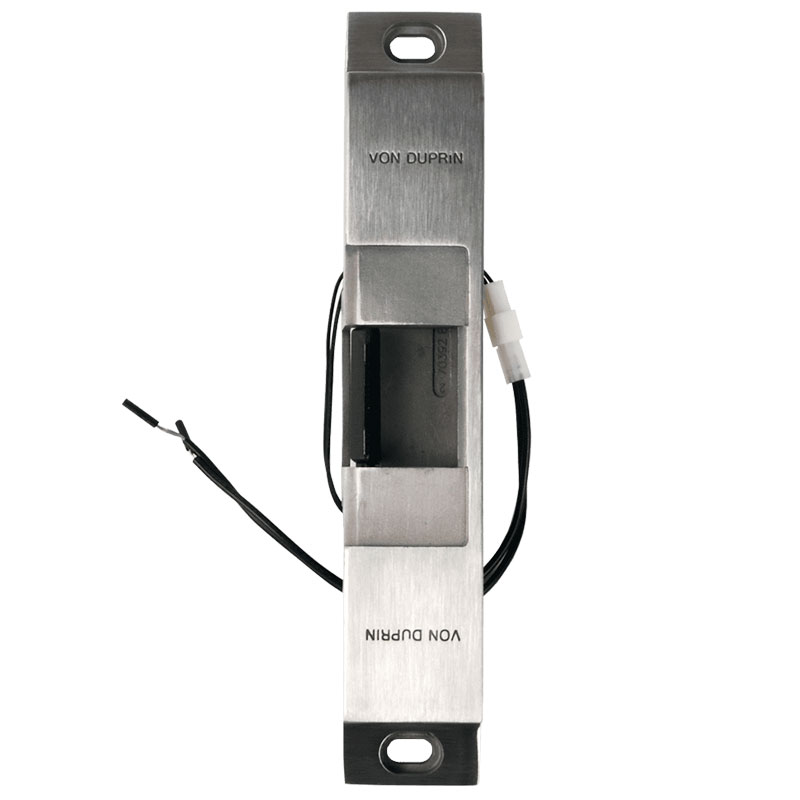

Von Duprin 6112 Electric Strike for Rim Exit Devices

Usually Ships: 1-2 Business Days
  • For use with rim exit devices with up to 3/4″ throw latch bolt
  • For interior or exterior hollow metal, aluminum, or wood frames
  • UL 1034 listed for burglary-resistant electric door strikes

Available Options:

Clear

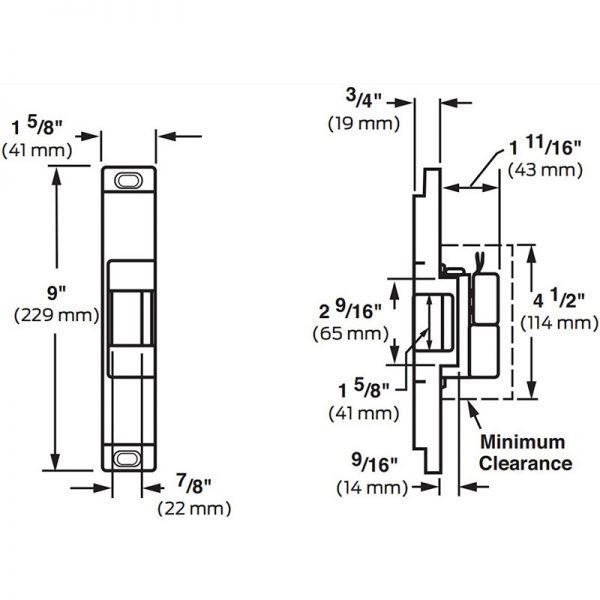

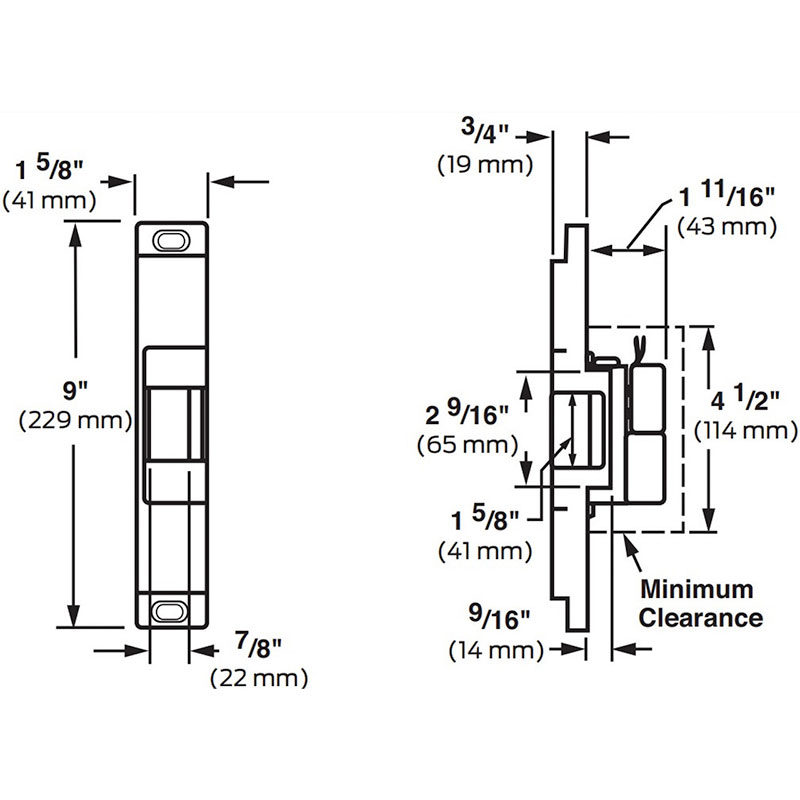

Von Duprin 6112 Grade 1 Electric Strike, 9″ x 1-5/8″ Faceplate, For use with Rim Exit Devices on Single Doors, Hollow Metal, Aluminum, or Wood Frame

The 6100 Series electric door strikes are designed for use with a variety of rim exit devices and include rim night latch and fire-rated solutions. Their stainless steel construction with integrated faceplate and smooth keeper movement help assure durability and reliability.

The 6100 Series is compatible with many Von Duprin, Falcon, and other manufacturers’ exit devices. In addition, they are suitable for retrofit with many Folger Adams models.

Ideal for high-abuse applications such as perimeter entrances and exits where secure access control is required.

  • Designed for use with rim exit devices
  • 24 VDC standard, 12 VDC option
  • For interior or exterior doors with hollow metal, aluminum, or wood frames
  • Heavy-duty stainless steel construction
  • 1500 lbs. static strength
  • Fail-secure standard: Requires power to be applied to unlock the strike lip. On loss of power, the strike lip is locked. Fire-rated.
  • Fail Secure models – Fire-rated UL 10C to 3 hours on single doors; 90 minutes on pair doors with manufacturer’s mullion
  • Retrofits model Folger Adam 310-4 1
  • When used to replace Folger Adam 310-4, minor fame prep modification required

Options

  • FS (Fail-Safe): Requires power to be applied to lock the strike lip. On loss of power, the strike lip is unlocked. Non-fire-rated.
  • DS: Monitors latch bolt and lock status. DS switches rated for 24 VDC at .050-2.0 amps.

Brand

Finishes

US10B (613) Oil Rubbed Bronze, US32D (630) Satin Stainless Steel

ANSI/BHMA Standard

ANSI BHMA A156.31 Grade 1

Usage

Heavy Duty

Fire Rating

UL 10C 3-hour fire-rated (fail secure only)

Part Type

Complete Electric Strike

Lock Type Compatibility

Rim Exit Device

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
