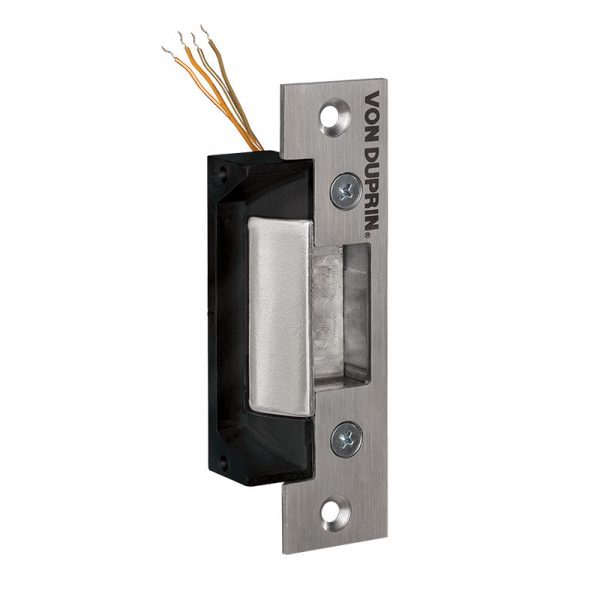

Von Duprin 4200 Series Electric Strike for Cylindrical Locks and Deadlatches

Von Duprin 4200 Series Electric Strike for Cylindrical Locks & Deadlatches, 4-7/8″ Faceplate Length

The 4200 Series is a traffic control solution for internal doors. It features a shallow back box, low current draw, field selectable voltage, and fail safe/fail secure conversion without disassembly.

4200 Series is designed to offer versatility in two commercial-duty electric door strike models. They are a great choice for applications where interior traffic control is the primary function.

Designed for compatibility with a wide range of cylindrical devices, they are able to address a broad range of needs. You’ll find 4200 Series strikes work with all Schlage and Falcon cylindrical locks as well as those of many other manufacturers. These reliable strikes are easy to order, configure, and install. Field selectable options include changing fail-safe and fail-sure modes without disassembly. They also feature a 12/24 dual-voltage solenoid for field wiring of either input voltage.

• Designed for cylindrical lock and deadlatch applications
• Suitable for interior doors with hollow metal or aluminum frames
• Capable of four in-field configurations

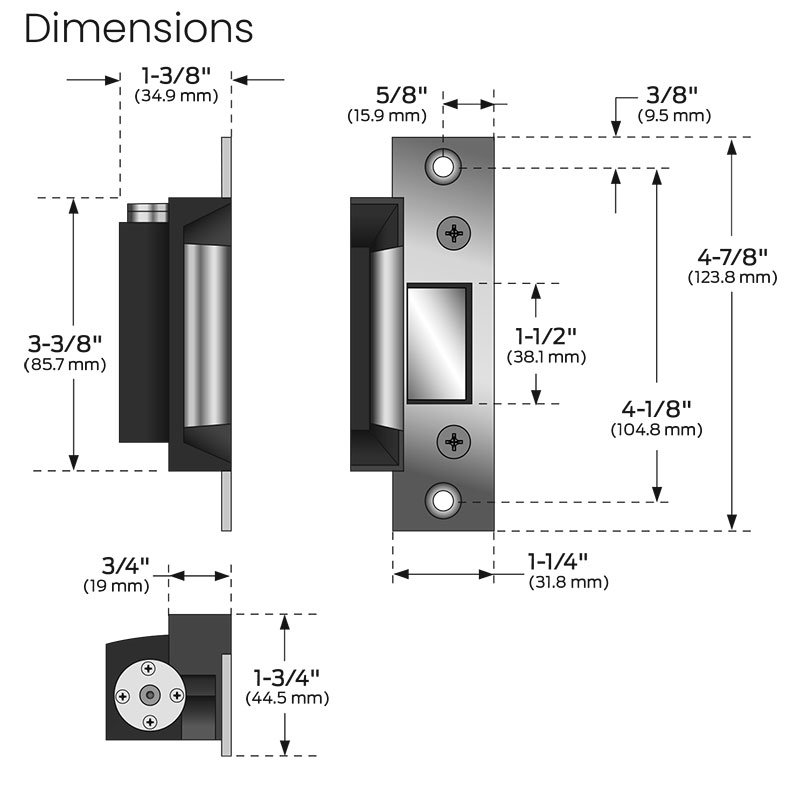

• Shallow 1-3/8″ backbox depth
• Field selectable 12/24 VDC voltage
• Non-handed, internal solenoid design
• Low current draw for PoE installations
• Field selectable power failure mode (fail-safe/fail-secure) without disassembly
• Heavy-duty stainless steel faceplate
• Latchbolt monitoring available (4212 model) – Monitor switch rating: 30VDC at 0.20 A
• Retrofits HES 5000/5200, RCI 6 Series

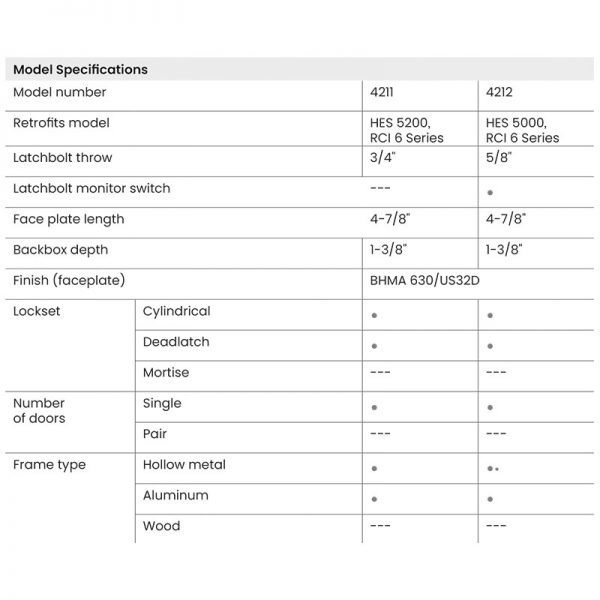

Models

• 4211: Compatible with locksets with 5/8″ (15 mm) throw latchbolts, or up to 3/4″ (19mm) throw latchbolts with a 1/8″ door gap
• 4212: Compatible with locksets with 1/2″(12.7mm) throw latchbolts, or up to 5/8″ (15 mm) throw latchbolts with a 1/8″ door gap – Latchbolt monitor switch
