33ANL-OP-628

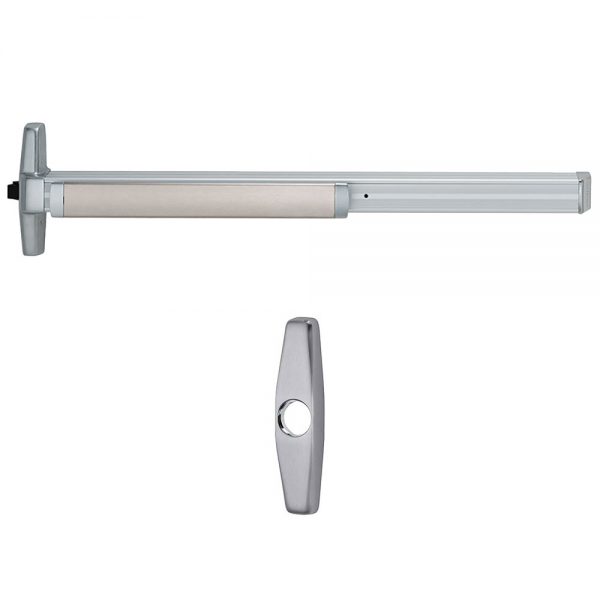

Von Duprin 33A-NL-OP Narrow Stile Rim Exit Device with Night Latch Cylinder Assembly

Usually Ships: 1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • Includes 388NL night latch cylinder assembly
  • Requires rim cylinder and pull (sold separately)

Available Options:

  • Total

Product Overview

Von Duprin 33ANL-OP Grade 1 Rim Exit Device, Narrow Stile Pushpad, 36″, Nightlatch, No Pull, Cylinder Assembly Only, Hex Key Dogging, Non-Handed

The 33 Series has been certified to the highest industry standards and are used in schools, hospitals and government buildings. The 33 Series is a high-performance heavy-duty push pad exit device. Von Duprin customers are supported by industry-leading expertise. Allegion’s representatives average more than 15 years of experience, so you’re assured to receive knowledgeable advice on fire and life safety codes, installation resources and more.

  • 3’0″ Length (for doors 2’4″ to 3’0″ wide)
  • Typically Installed on Aluminum Doors
  • US28 (Anodized Aluminum) or 313 (Dark Bronze) Finish

388NL Night Latch Trim, Optional Pull Required

  • ANSI Function: 03 (Key retracts latchbolt, optional pull required)
  • Base Size: 7-1/2″ x 11-1/16″
  • Projection: 1″
  • Requires pull (sold separately)
  • Requires rim cylinder (sold separately)

made-in-usa

Brand

Finishes

313 Duranodic Dark Bronze, US28 (628) Anodized Aluminum
Length

3'0"
Trim

388NL
Cylinder

Requires rim cylinder (sold separately)
Fire Rating

Non-Fire-Rated
Hand

Device Non-Handed – Lever Field Reversible
ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Usage

Heavy Duty
Latchbolt

Deadlatching, 3/4" throw
Dogging Feature

Half turn hex dogging standard
Stile Type

Narrow
Stile

1-3/4" Minimum
Strikes

1439 Standard
Door Applications

1-3/4" Metal, Wood or Aluminum Doors
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
