Von Duprin 22DT Rim Panic Bar Exit Device with 210DT Dummy Pull

Usually Ships: 1-2 Business Days

ANSI/BHMA Grade-1 Certified – Made in USA
ANSI Function 02 (Pull when Dogged)
Includes 210DT Dummy Pull

Available Options:

Finish

Length

Clear

Quantity:

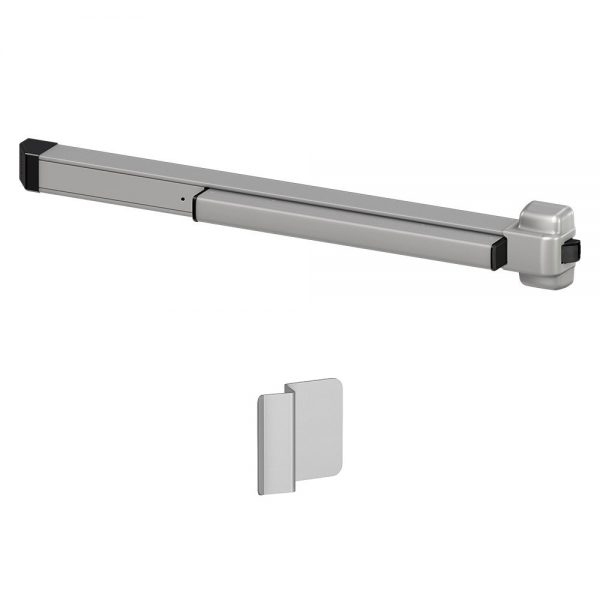

Von Duprin 22DT Grade-1 Rim Exit Device with Trim, Dummy Pull

The 22 Series wide stile device is a cost-effective solution for medium to low traffic areas where proven reliability is needed. The non-handed design of the 22 Series makes it more adaptable in the field. It is ANSI A156.3, Grade-1 certified. The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System. It also is UL listed for Panic Hardware or Fire Hardware.

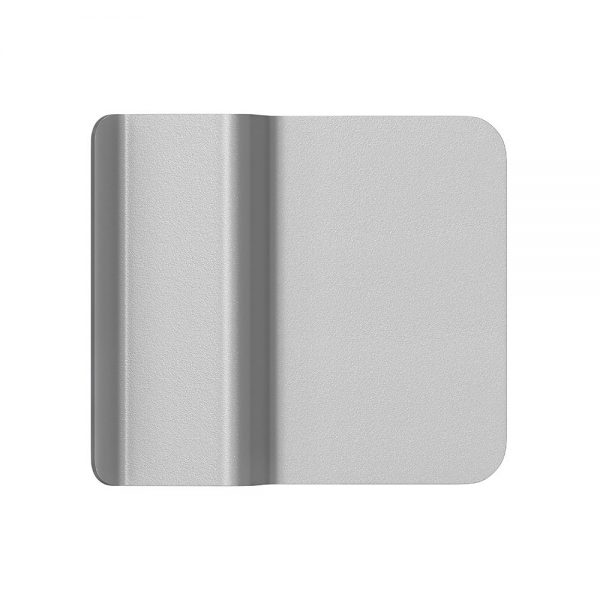

210DT Dummy Pull Trim

ANSI Function 02 (Pull when Dogged)
Escutcheon plate size: 5-3/8″ x 4-25/32″ x 3/32″
Projection: 1-31/32″

Brand	Von Duprin
Finishes	622 Matte Black, 689 Aluminum (Powder Coated), 695 Dark Bronze (Powder Coated)
Length	3'0" (2'4" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors)
Trim	210DT Dummy Pull
Hand	Non-handed
Fire Rating	None
ANSI/BHMA Standard	ANSI/BHMA A156.3-2008 Grade 1 certified
Usage	Medium Duty
Latchbolt	Deadlatching, 3/4" throw
Strike	299 roller strike standard, 299F strike with fire-rated device
Dogging Feature	Hex key dogging standard on non-fired-rated devices
Stile Type	Wide (Standard)
Warranty	5 Year
Buy American Act Compliance	Meets Buy Amercian Act – Made in USA
