Von Duprin 050046 98/99 Exit Device Maintenance Kit, Assorted Parts

Von Duprin 050046 98/99 Maintenance Kit, Assorted Parts

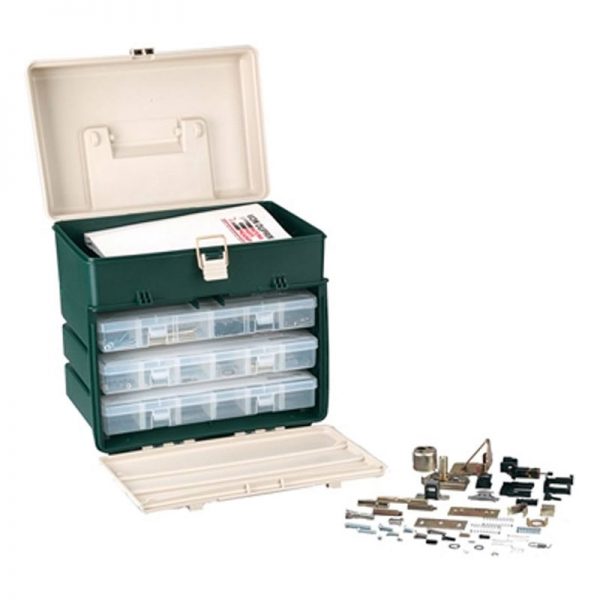

The Von Duprin 050046 98/99 Maintenance Kit has all the pieces and screws to keep your 98 or 99 device operating for years. Includes 17 pounds of replacement parts for panic hardware and outside trim.

The contents of the kit are as follows:

• 1ea. TACKLE BOX
• 1 ea. VON DUPRIN MAINT. KIT MANUAL
• 2ea. 425 SNB PKG-2 US32D
• 2ea. 325 SNB PKG-2 US32D
• 4ea. IMPACT RESIST END CAP BRKT PKG
• 4ea. 98/9927 ROD GUIDE PKG US32D
• 2ea. SA DAMPER ASSY
• 1ea. 33/35/98/99 E/CAP SCREW PKG
• 12ea. 264/299F/499F STRIKE SHIM
• 20ea. 8-32 1/4″ UFPH MS STL CZNC
• 12ea. 10-32 1/4″ UFPH MS SS NYL
• 12ea. 10-24 X 3/4 FPHMS – STL BO
• 6ea. WAVE SPRING WASHER SS, .440 ID X .618 OD X .008 THICK, .440
• 12ea. 10-24 3/4″ PPHMS STL CZNC
• 12ea. ROLL PIN SPIROL YZNC STL .1/8
• 24ea. 10-24 1″ PPH MS TYP 2A STL YZN
• 12ea. #10 EXT TOOTH LOCK WASHER YZNC
• 12ea. 10-24 X 1 3/8 PPHMS 2A – STEEL
• 25ea. TRUARC RET. RING T5304-18 STL
• 12ea. 10-24 X 3/4 UFPHMS 2A – STEEL
• 50ea. 8-18 3/8″ UFPHMS TYP 25 STL CZ
• 12ea. RET RING #5160-42 TRUARC STL
• 6ea. 1/4-20 5/8″ SOC SET STL BO
• 12ea. 1/4-20 3/4″ UFPH MS SS
• 50ea. 12-14 1/2″ HEX WSHR HD TYP AB
• 20ea. 10-12 X 10-24 X 1 PTHCS – S.S.
• 10ea. 3347A/9947 RATCHET LEVER SPRIN
• 10ea. BOLT RETURN SPRING YZNC
• 4ea. CYLINDER RETAINING CUP-210/990
• 4ea. ROD EXTENSION CONNECTOR
• 4ea. EXT ROD DRILL TEMP.-2227/9927
• 10ea. 9927 AUX. BOLT SPRING YZNC
• 12ea. 299 STRIKE SHIM
• 4ea. 299 STRIKE PLATE
• 12ea. NL DRIVE SCREW-99 DEVICE – STL
• 6ea. 33/99 ANTI-RATTLE SPRING
• 12ea. 3347A/9947 COMPRESSION SPRING
• 30ea. TAILPIECE GUIDE
• 12ea. 992 HEX STUD YZNC
• 2ea. HEX DOGGING SHAFT YZNC
• 2ea. DOGGING SPRING BO-WAXED
• 2ea. DOGGING ADAPTOR SPRING
• 2ea. CD ACTUATOR YZNC
• 24ea. 992 LIFT SPRING
• 25ea. SHEAR PIN BD
• 12ea. 994 HEX STUD YZNC
• 2ea. CD DOGGING PLUG YZNC
• 20 ea. PUSHBAR GUIDE
• 4ea. MECHANISM END CAP BRKT YZNC
• 12ea. WS SLIC-PIN
