Schlage L9040 06A OS-SYM Privacy Mortise Lock with LOCKED/UNLOCKED Symbols Indicator, 06 Lever, A Rose

Usually Ships: 1-2 Business Days
  • Extra Heavy-Duty, ANSI/BHMA Grade-1 Certified
  • ANSI Function: F22 – Privacy/Bath
  • Includes Symbols Only Indicator

Available Options:

Clear

Schlage L9040 OS-SYM Privacy Mortise Lock, 06A Design, Symbols Only Indicator for Outside of Door

Nothing is tougher. The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable and intelligent family of products on the market today. When you choose a Schlage lock you can have confidence you’ve chosen a solution that will provide protection at the most critical moments.

L Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.

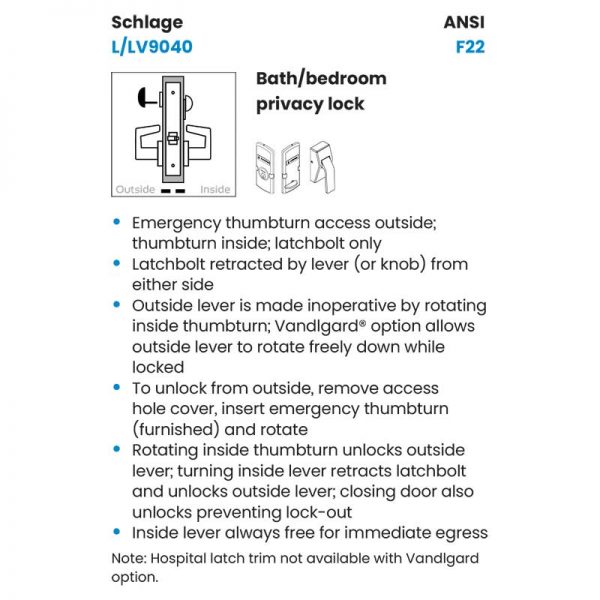

ANSI F22 – Privacy – Latchbolt retracted by lever from either side unless outside is locked by inside thumbturn. Turning inside lever or closing door unlocks outside lever. To unlock from outside remove emergency button, insert emergency thumbturn (furnished) in access hole and rotate. Inside lever is always free for immediate egress.

  • Patented, 180-Degree, High-Visibility Lock Status Indicator
  • Maximized message size
  • Red and white backgrounds to serve color-blind needs
  • Exceeds ANSI/BHMA Grade 1 Security and Operational standards
  • UL listed for 3-hour fire door
  • Meet ADA requirements

codes

Brand

Finishes

626 Satin Chrome, 630 Satin Stainless Steel

Lock Function

Privacy with Indicator

ANSI Function

F22

Usage

Heavy Duty

ANSI Grade

ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1

Fire Rating

“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Lever Design

06A

Backset

2-3/4"

Strike

ANSI curved lip strike 1-1/4" x 4-7/8" x 13/16" lip to center with dust box standard

Case

Steel case and parts are corrosion resistant

Case Size

4-7⁄16" x 6-1⁄16" x 1"

Armored Front

1-1/4" x 8" x 7/32" standard

Handing

Field-reversible handing without opening lock case

Door Thickness

1-3/4"
