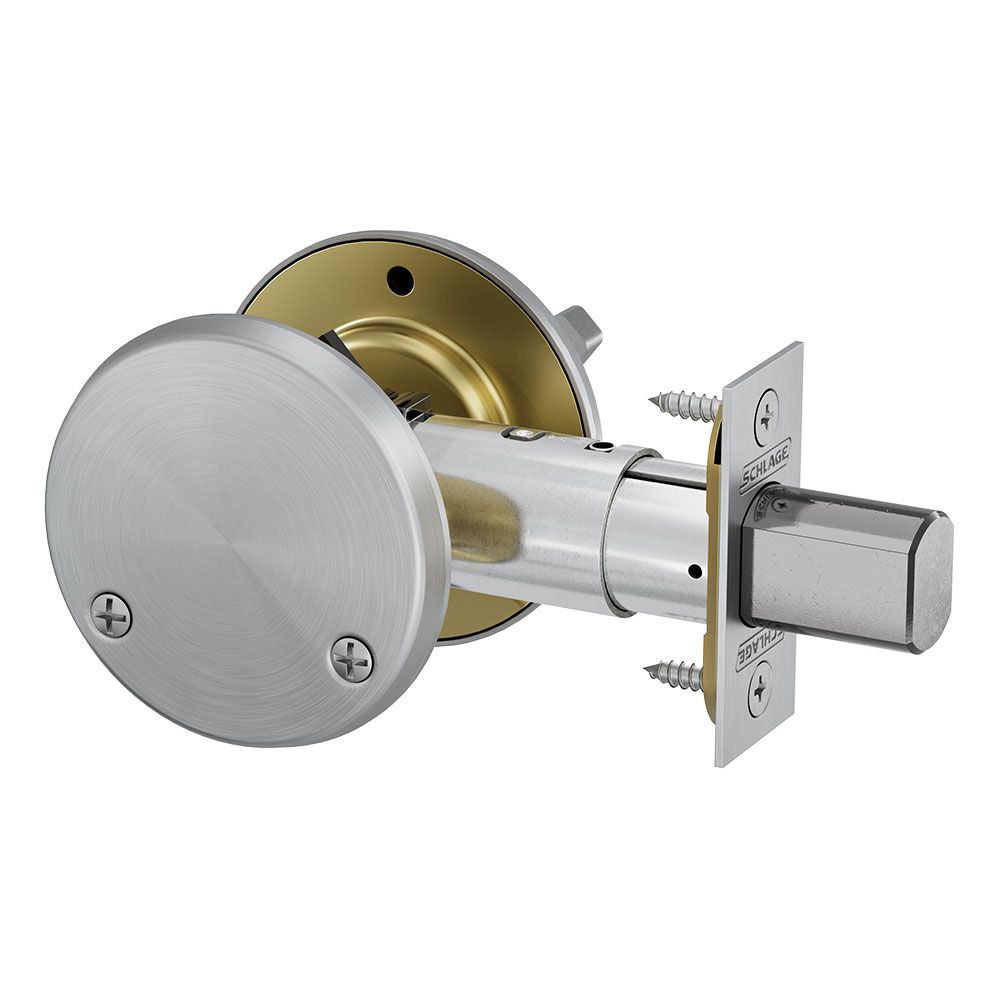

Schlage B581F Fire-Rated Door Bolt with Trim, Inside Turn x Blank Plate

Usually Ships: 20-30 Business Days
  • ANSI/BHMA A156.5 Grade 2 certified
  • Inside turn x blank plate outside
  • 2-3/8″ to 2-3/4″ adjustable backset

Available Options:

Clear

Product Overview

Schlage B581F Grade 2 Fire-Rated Door Bolt, Inside Turn x Blank Plate, Adjustable 2-3/8″ and 2-3/4″ Backset

ANSI Function E01112: Deadbolt thrown or retracted by trim unit only. Blank plate outside. Requires 1 ½” cross bore prep.

  • 2-3/8″ to 2-3/4″ Adjustable Backset (1″ x 2-1/4″ latch face)
  • Quick, easy installation – Adjustable backset locks into place
  • Can be suited with virtually all Schlage levers and knobs
Brand

Finishes

605 Bright Brass, 606 Satin Brass, 609 Antique Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 643e Aged Bronze
Deadbolt Type

Turn Inside x Blank Plate
ANSI Function

E01112
ANSI/BHMA Standard

ANSI A156.36, Grade 2
ANSI Grade

ANSI Grade 2
Usage

Medium Duty
Bolt

1" throw bolt, 1" x 2-1/4" square corner face plate
Backset

2-3/8" to 2-3/4" Adjustable
Strike

1-1/8” x 2-3/4“ square corner
Fire Rating

UL Listed up to 90 Minutes
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Door Thickness

1-3/8" to 1-3/4"
