Schlage AL40S NEP (Neptune) Privacy Lever Lock

Usually Ships: 2-3 Business Days
  • Medium Duty – ANSI Grade 2
  • Discontinued March 2021, available while supplies last
  • Replaced by Schlage ALX40 SPA

Available Options:

Clear

Available while supplies last (No returns allowed)

The AL40S is designed for restroom doors in offices, banks, retail spaces, hotel guest rooms and many other applications. AL Series locks are designed to deliver ADA compliant accessibility and constant, reliable performance in medium-to-high-traffic areas.

ANSI Function F76 – Keyless – Push-button locking; Can be unlocked from outside with small screwdriver; Turn inside lever or close door to release button – Inside lever always free for immediate egress

  • Cold-rolled steel, machined and threaded hubs, and locking nuts prevent the loosening of the leverset by securely bolting the chassis to the door
  • Patented door range adjuster allows quick and easy adjustment for doors ranging from 1-3/8″ to 1-7/8″ thick
  • Exceeds ANSI/BHMA Grade 2 requirements for strength

Brand

Finishes

622 Matte Black

Lock Function

Privacy

Lever Design

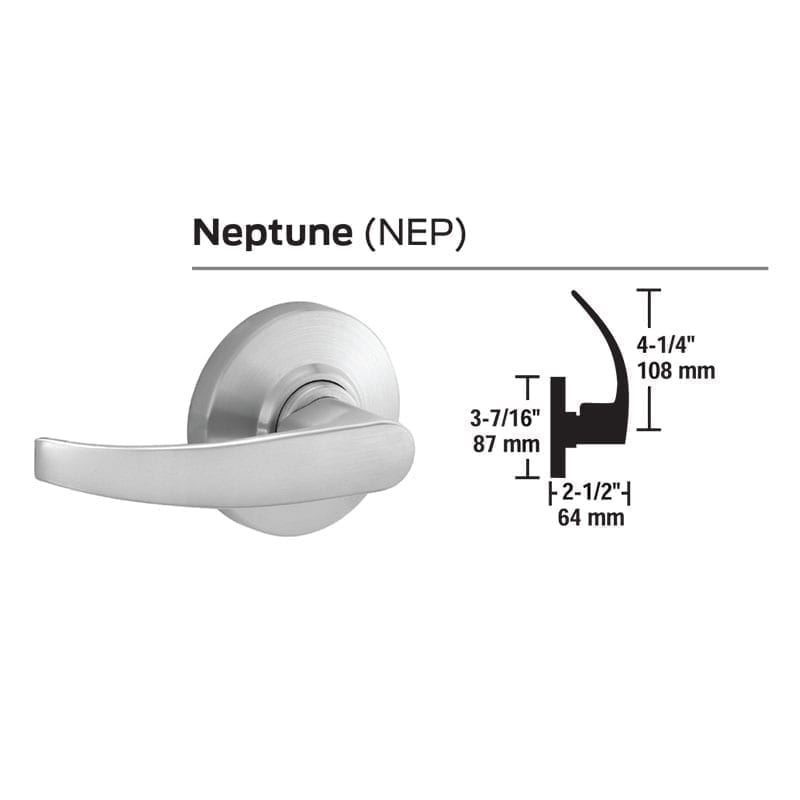

NEP (Neptune)

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Usage

Medium Duty

ANSI/BHMA Standard

Tested and certified under ANSI/BHMA A156.2, Grade 2

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front

Handing

Non-Handed

Door Thickness

1-3/8" to 1-3/4"

Latch

1/2" throw – 1-1/8" x 2-1/4" face

Warranty

Three year limited

Schlage_AL-Series_Installation_Instructions
