Sargent-855

Sargent 855 Retrofit REX Request to Exit Switch 80 Series Exit Devices

$273.03

Usually Ships: 1-2 Business Days
  • Request-to-Exit signal switch
  • Compatible with all rail sizes (E, F, J, G)
  • 30 VDC@2 Amp maximum rating

Product Overview

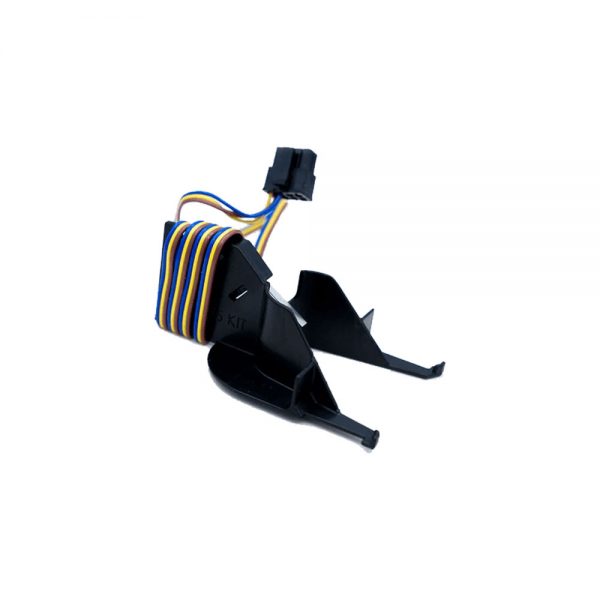

Sargent 855 Retrofit REX Request to Exit Switch 80 Series Exit Devices

The 855 Signal Switch Kit is designed to be retrofit into an existing 80 Series rail assembly. The signal switch monitors the touch bar and signals a remote location that someone has egressed. The 855 signal switch can also be used as a request to exit switch, to de-energize a mortise lock.

  • Retrofits existing 80 Series device installations with Request-to-Exit Signal Switch option
  • Compatible with all rail sizes (E, F, J, G), minimum rail length 26″
  • Can not be used with 56- rails
  • Switch type SPDT form “C” contacts
  • 30 VDC@2 Amp maximum rating
Brand

Part Type

Request to Exit Kit
Compatible Devices

Sargent 80 Series
