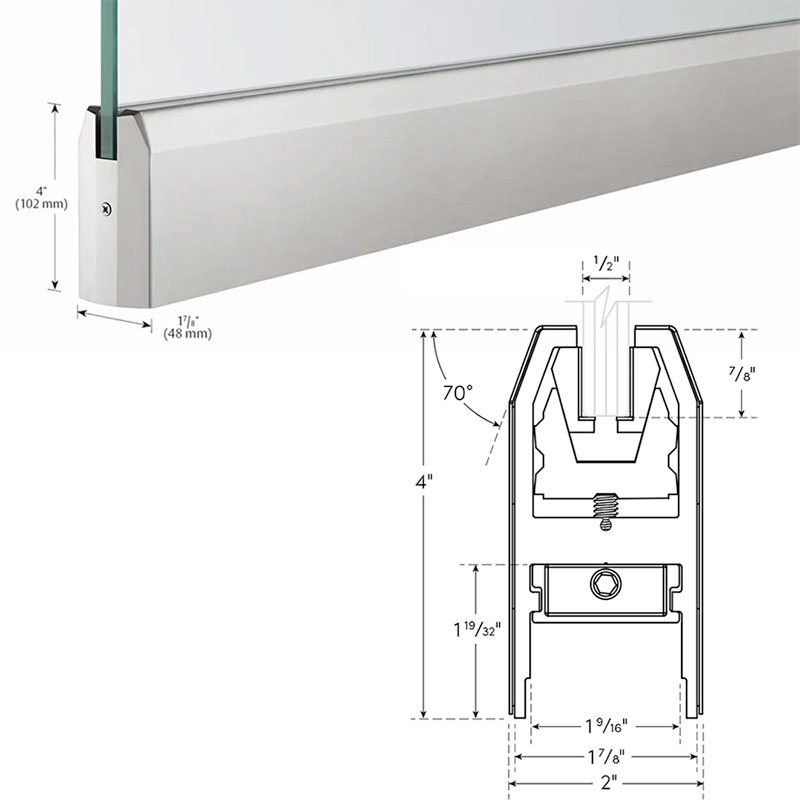

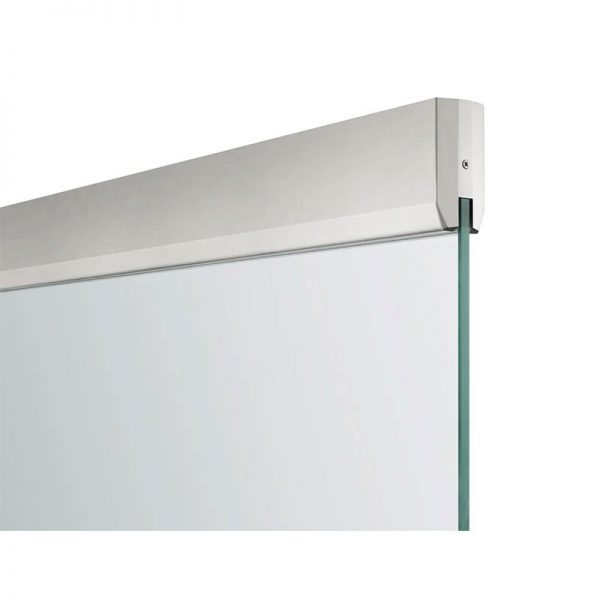

Rockwood DRT-4AC-T-A 4″ Tapered Top Door Rail

Usually Ships: 5-10 Business Days

35-3/4″ rail length standard, 4″ height
For 3/8″ to 1/2″ thick glass door (sold separately)

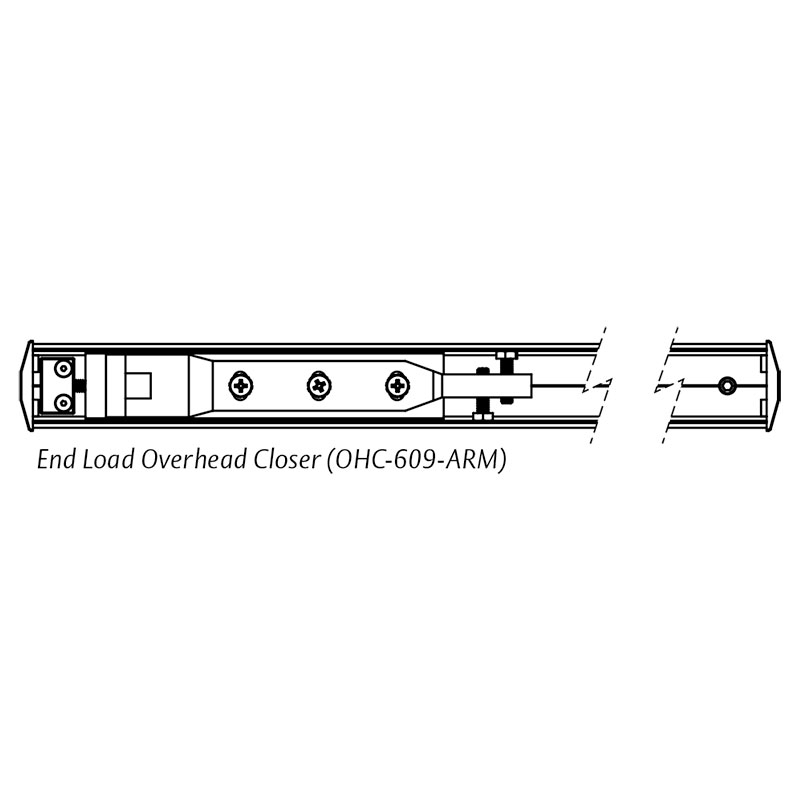

Includes end load overhead closer arm sub-assembly

Available Options:

Finish

Length

Clear

Quantity:

Rockwood DRT-4AC-T A 0.5 35.75 2.6250 – Top Door Rail, Tapered, 4″ Height, 1/2″ Glass Thickness, 35-3/4″ Glass Width, A End Load Overhead Closer Arm Sub Assembly, 2-5/8″ Pivot Centerline

The tapered 4″ mechanical glass door rail meets ADA requirements and is GreenCircle Certified. Its one-piece compression system is pre-assembled and has dry glaze feature for easy installation.

Features

Dry glaze pre-assembled mechanical rails
Precise, custom fabrication for compatible hardware
Adjustable blocking for standard hardware provides left-to-right field alignment
Meets ADA requirements

Benefits

One-piece compression system for easy, fast installation
Tested in a variety of simulated and real-life scenarios to ensure holding power

Brand	Rockwood
Length	35-3/4" (for 3'0" door)
Finishes	BSP Black Suede Powder Coat, US32D (630) Satin Stainless Steel
Height	4"
Glass Thickness	3/8", 1/2" or 9/16"
Material	Aluminum
Buy American Act Compliance	Meets Buy Amercian Act – Made in USA
