Product Overview
Dormakaba RCI YD30 Series Electronic Side Load Locks
YD30 Series – Reliable, secure, convenient
The YD30 series electronic side load locks are motor driven electronic locks that use a collapsing mechanism that is deadbolted when locked. It is designed to secure commercial single or double acting doors. The locks solve two significant challenges found with door locking: 1) align a misaligned door and 2) release when requested, even with excessive load on the door
The YD30 series gives the user the ability to control access in and around a facility and provide traffic reports when desired. Additionally, the YD30 series can be used in a more straightforward system where controlling access to a single door can be implemented with a stand-alone RTE access system.
Versatile installation:
- Mortise mount horizontally or vertically, on double-acting doors
- Installation to metal doors and frames with the addition of the YD30SD208 installation tabs (sold separately)
- Surface mount with the aid of the accessories, including mounting onto glass
- User selectable fail-safe and fail-secure modes

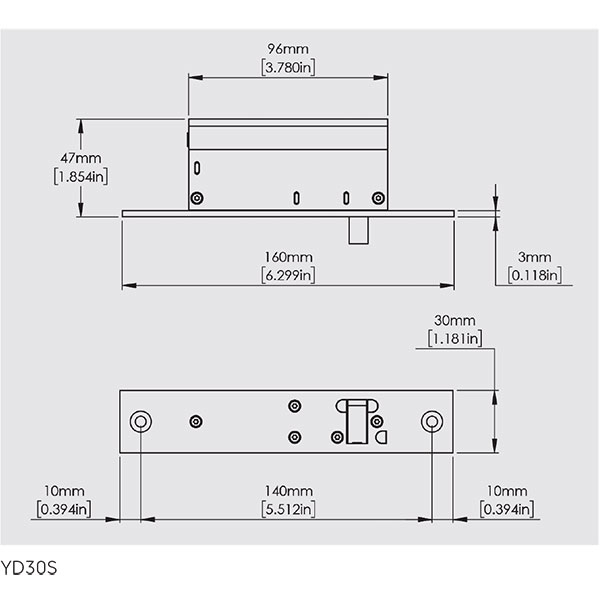

YD30S Single – 6-1/4” x 1-1/4” x 1-7/8”
A high traffic, low voltage, motor-driven door lock for 90° doors. It is typically activated by access control systems and used in single-acting pedestrian doors where door alignment or releasing when requested under sideload is required. The pivot action of the YD30S bolt pins will ‘grab’ the strike plate and pull the door into position for a misalignment up to 8mm (5/16”). It is commonly seen in mortise installations on office doors but also used on single-acting glass doors where security is paramount, convenience required, and appearances important.
YD30D Double – 10” x 1-1/4” x 1-7/8”
A high-traffic, low voltage, motor-driven door lock for 180° swing doors. It is typically activated by access control systems and used in commercial double entrance doors in either mortise or surface installation as well as swing-through glass doors where security is paramount, convenience required, and appearances important. The pivot action of the YD30D bolt pins will ‘grab’ the strike plate and pull the door into position for a misalignment up to 16mm (+ -8mm, + -5/16”) Found in most market sectors but primarily in commercial, healthcare, airports and government.

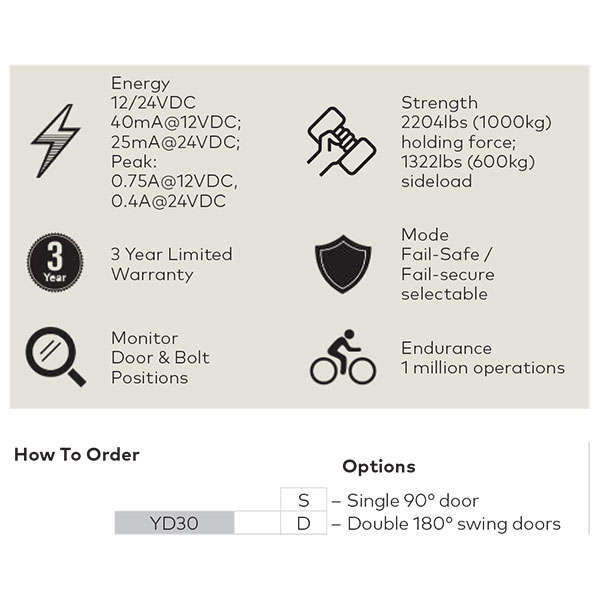

Brand | |
---|---|
Finish | Stainless Steel |
Model | YD30D – Double, YD30S – Single |
Usage | Heavy Duty |
Holding Force | 2204 lbs |
Sideload (RTE) | 1322 lbs |
Endurance | Cycle tested to 1,000,000 operations |
Voltage | 12/24 VDC |
Bolt Pin (2 pieces) | 10mm thick, 13mm extension |
Material | Lock / Strike Plate: Stainless Steel 304Bolt Pin: Stainless Steel 17-4PH |
Certifications | CE, RoHS 2, FCC Part 15 / IC RCM, Suitable for use on fire resistant doors (YD30D only) |
Warranty | 3 Year |
