Pemko WING16 Miter Returns for Modular Ramp Threshold Assembly

Usually Ships: 5-10 Business Days
  • Designed to fit into the end of a modular ramp threshold assembly
  • Can be trimmed to fit ramp assembly
  • Sold as a pair (1ea. WING16LH, 1ea. WING16RH)

Available Options:

Clear

Pemko WING 16 Series Miter Returns

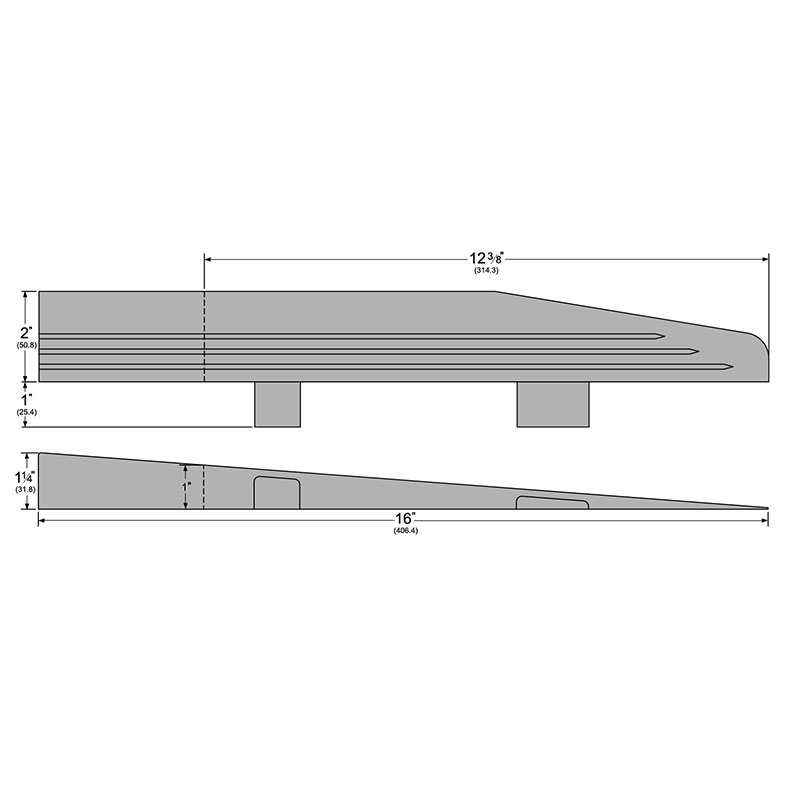

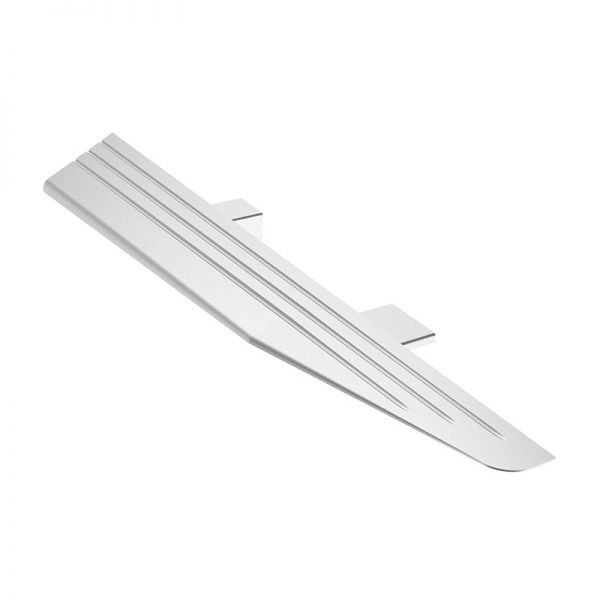

The WING16 Series Miter Returns are 16″ wide cast aluminum “wings” designed to fit into the end of a modular ramp threshold assembly. They provide a neat and tight-fitting solution, replacing traditional mitering methods. Please note that these miter returns are not ADA compliant. These miter returns are BHMA certified and fire-rated for positive pressure.

  • For modular ramp thresholds (thresholds, ramps, and other assemblies not included)
  • Sold as a pair: 1ea. left-hand (WING16LH) +  1ea. right-hand (WING16RH)
  • Wings fit into each end of modular ramp threshold assembly, and are fastened to ramp mid sections with self-tapping machine screws
  • Cast aluminum
  • Match-drilled
  • Not ADA-compliant
  • Handed from the low end and are determined by which side of ramp it fits into
  • Can be trimmed to fit ramp assembly
  • Closes off ends of ramps up to 1-1/4″
  • Neat, tight-fitting, and compact design
  • Replaces traditional mitering methods
  • Mill finish (optional Pemkote skid resistant finish)
  • Pemkote™ is highly recommended for all threshold assemblies, especially exterior conditions where moisture may be present. Pemkote Meets Requirements of: ASTM D 2047 & Federal Specifications P-F-430C.

Finishes

  • A – Mill Finish Aluminum Aluminum
  • AK – PemKote Skid Resistant Surfacing Aluminum
Brand

Finishes

A – Mill Finish Aluminum, AK – Mill Finish Aluminum w/ PemKote

ADA Compliance

Non ADA Compliant

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
