Pemko-SBR.5F-Ramp
Pemko-SBR.5F
Pemko-SBR.5F-Ramp
Pemko-SBR.5F

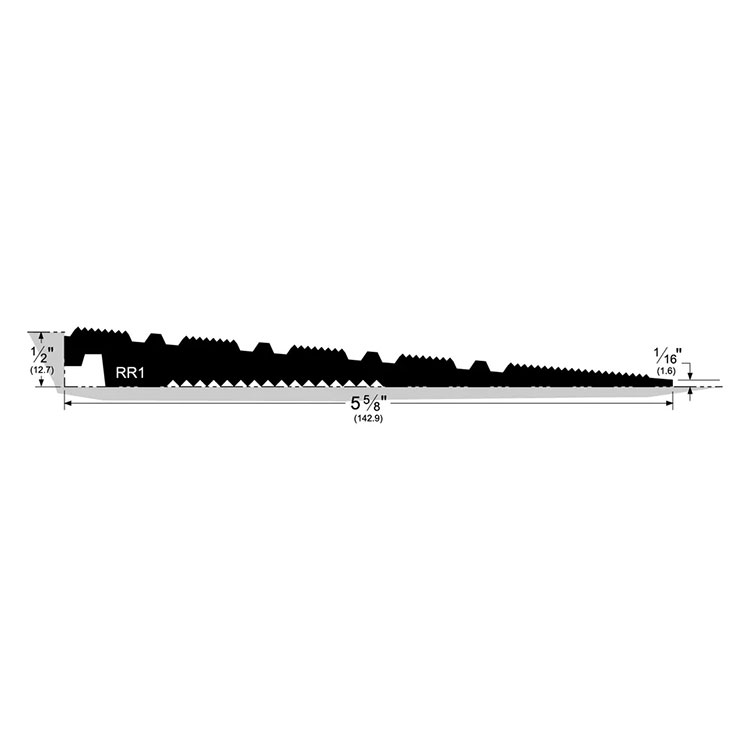

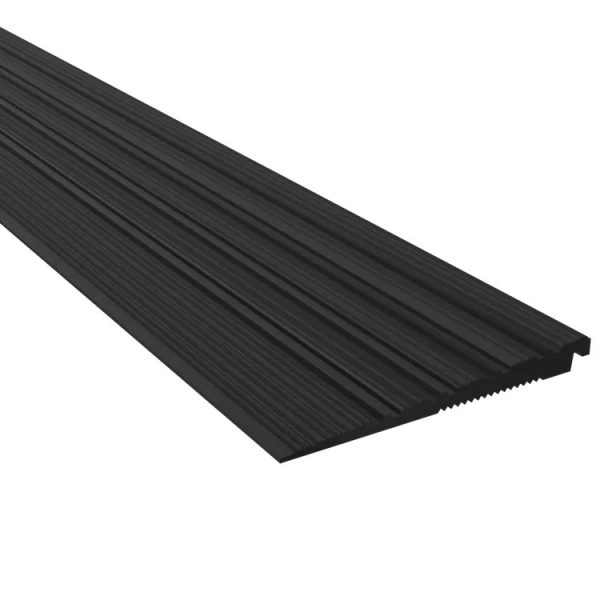

Pemko SBR.5F Rubber Ramp Threshold Assembly – 5-5/8″ Wide x 1/2″ Offset

Usually Ships: 10-15 Business Days
  • Durable and anti-slip surface provides superior grip
  • ADA Compliant, meets ICC/ANSI A117.1
  • Abrasion and impact resistant, fire retardant

Available Options:

Clear

Product Overview

Pemko SBR.5F Fire Retardant Styrene Butadiene Rubber Ramp Threshold Assembly

The SBR.5F Fire Retardant Styrene Butadiene Rubber Ramp Threshold Assembly is designed to transition a 1/2″ flush offset, making it wheelchair accessible. Its durable and anti-slip surface provides superior grip. The ramp complies with ADAAG 2010, IBC/ANSI A117.1, California Title 24, UL Standard for Safety (UL410), ASTM D 2047, and Federal Specification P-F-430C.

  • Extruded from styrene butadiene rubber
  • Cut square on each end but are available with molded rubber miter returns
  • No bump tapered lead edge
  • For temporary applications, an assembly which has been bonded together but has not been bonded to a base surface can be removed from one opening and placed at another
  • 1/2″ offset height
  • Long-lasting, weather and ozone-resistant
  • Abrasion and impact resistant, fire retardant
  • Can be butted together for longer lengths
  • Superior grip, anti-slip surface
  • Easy to install using construction adhesive
  • Portable
  • Can be cross-cut to length or ripped to a custom offset height in field

Certifications

  • Americans with Disabilities Act (ADA) Compliant
  • ANSI/BHMA A117.1

made-in-usa

Models: SBR.5F36, SBR.5F48, SBR.5F60, SBR.5F72

Brand

Length

36", 48", 60", 72"
Width

5-5/8"
Height

1/2"
Finish

Black
Material

Black rubber
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
