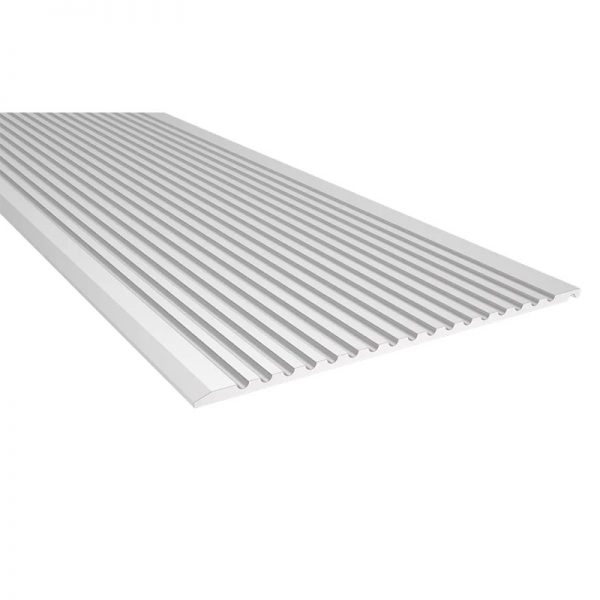

Pemko RAMP2_ Bridge Component for Variable Ramp Assembly – 10″ Wide x 1/4″ High

Usually Ships: 5-10 Business Days
  • 10″ variable ramp component
  • Accommodates offsets
  • Supplied undrilled

Available Options:
Clear

Product Overview

Pemko RAMP2_ Bridge Component for Variable Ramp Assembly – 10″ Wide x 1/4″ High

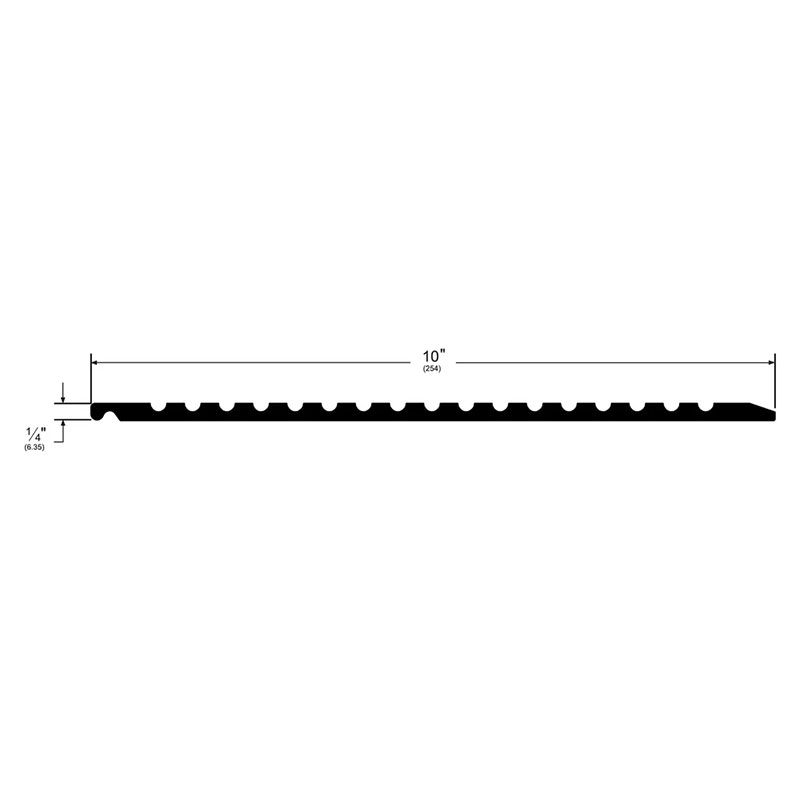

The RAMP2 is a 10″ wide x 1/4″ high bridge component that is used in the Variable Ramp Assembly. This component is BHMA certified, ADA compliant, and UL 10C fire rated. Ideal for creating accessible ramps in various settings.

  • 10″ variable ramp component
  • For new construction, only ADA-compliant in certain applications
  • Ideal for use in cross traffic corridors where a minimal projection may be required and a steeper slope may be allowed
  • Supplied with #10 stainless steel sheet metal screws, other screw types available
  • Miter returns not available
  • Fill and feather threshold ends; do not leave threshold ends open
  • Allows for creating configurations without cost of custom extrusions
  • Accommodates offsets
  • Supplied undrilled
  • PemKote highly recommended, especially exterior conditions where moisture may be present
  • Fire-rated

Finishes

  • A – Mill Finish Aluminum Aluminum
  • AK – PemKote Skid Resistant Surfacing Aluminum

This product is fabricated to order and is not returnable or refundable.

Brand

Finishes

AK – Mill Finish Aluminum w/ PemKote, Mill Finish Aluminum
Length

36", 48", 60", 72", 84", 96"
Width

10"
Height

1/4"
Fire Rating

Fire rated-UL10c
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
