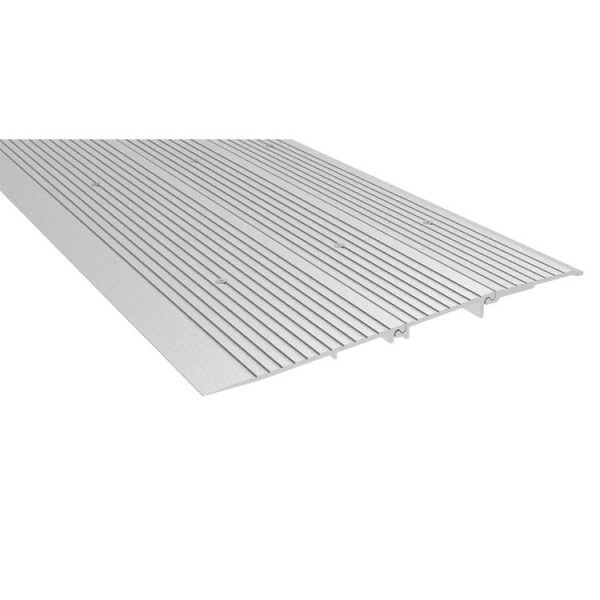

Pemko R.5OSS_ ADA Compliant Offset Modular Ramp Threshold Assembly – 12-3/4″ Wide x 1/2″ Offset

Usually Ships: 20-30 Business Days
  • 12-3/4″ wide x 1/2″ floor offset
  • Perfect for transitioning between offset floor conditions
  • Barrier-free, ADA compliant, ICC/ANSI A117.1

Available Options:
Clear

Product Overview

Pemko R.5OSS_ Offset Modular Ramp Threshold Assembly – 16-1/4″ Wide x 1/2″ Offset

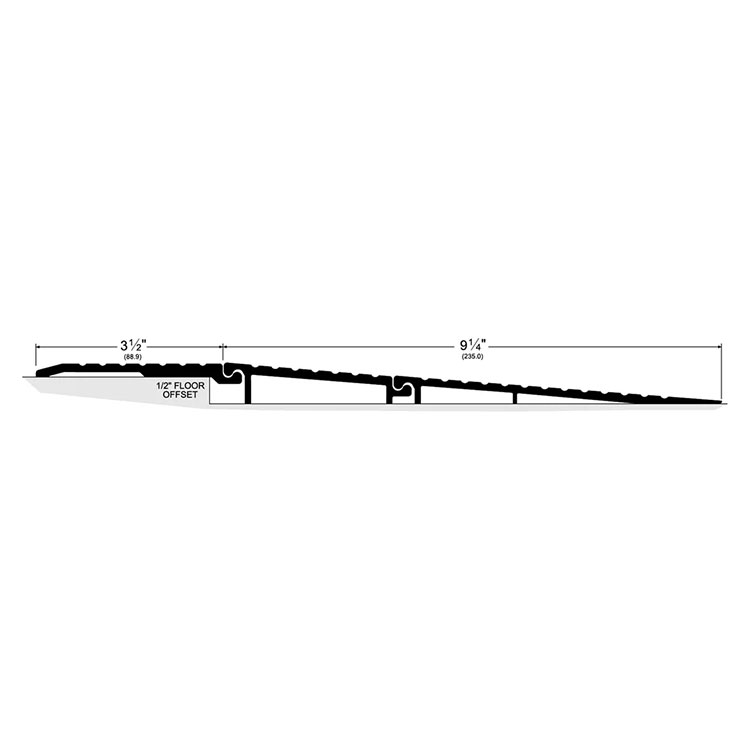

The R.5OSS 1/2″ Offset Modular Ramp Assembly with a 3-1/2″ top plate and 12-3/4″ width is designed to provide smooth and safe passage to individuals with limited mobility when transitioning between offset floor conditions. PemKote non-slip coating application is highly recommended for added protection. Optional Miter Returns (not ADA compliant) are also available for added convenience.

Assemblies accommodate 1⁄2″ to 21⁄4″ floor offsets in meeting the 1:12 slope requirements of the “Americans with Disabilities Act”.

  • PemKote™ is highly recommended, especially in exterior conditions where moisture may be present
  • Supplied with #10 stainless steel wood screws, other screw types available
  • Assemblies are provided NET length
  • Miter returns will add two pieces to total components; miter returns with extenders will add four pieces to total components
  • Fire rated
  • 1/2″ floor offset
  • 3-1/2″ top plate
  • ADA-compliant (except when used with miter returns)
  • Provides seamless transition between offset floor conditions

Finishes

  • R.5OSSA: A – Mill Finish Aluminum Aluminum
  • R.5OSSAK: AK – PemKote Skid Resistant Surfacing Aluminum

This product is fabricated to order and is not returnable or refundable.

Brand

Finishes

AK – Mill Finish Aluminum w/ PemKote, Mill Finish Aluminum
Length

36", 48", 60", 72", 84", 96"
Width

12-3/4"
Height

1/2"
Fire Rating

Fire rated-UL10c
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
