Pemko FM_SLISF_HD Full Mortise Short Leaf Inset Safety Continuous Gear Hinge, Heavy Duty

Usually Ships: 5-10 Business Days
  • ANSI/BHMA A156.26 and UL certified
  • Ideal for child care and nursing facilities
  • Designed mainly for new door applications

Available Options:
Clear

Product Overview

Pemko _FM_SLISF_HD Heavy-Duty Full Mortise Safety Short Leaf Inset Continuous Gear Hinge

Heavy Duty Anodized Aluminum Full Mortise, Short Leaf Inset Continuous Geared – are designed mainly for new door applications in child care and nursing facilities.

  • Applied to conceal both leaves
  • Heavy duty hinge (HD1): 3″ between bearing centers
  • Fasteners are No. 12-24 x 11/16″ #10 Head FHUC, Type C, threadforming, no tapping required
  • HD1 hinges conform to Grade 2-150, Grade 1-300, and Grade 1-600 cycle requirements per BHMA standard ANSI/BHMA A156.26-2006

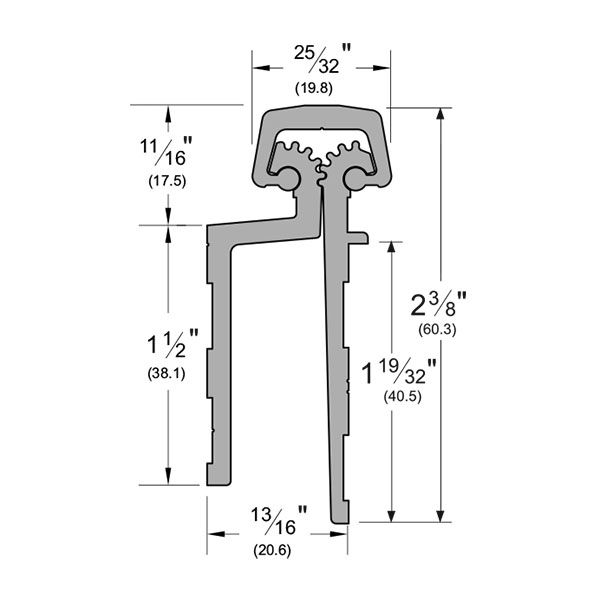

  • Width: 13/16” (between frame edge and door edge, square edge door applications)
  • Width: 27/32” (between frame edge and door edge, beveled edge door applications)
  • Cap Width: 25/32”
  • Height: 1-1/2” (frame edge side – leaf)
  • Height: 1-19/32” (to flange/door edge side – leaf)
  • Length: 83″ or *95″
  • Finishes: C (Clear Anodized) and D (Dark Bronze Anodized)

codes-pemko-hinge
*excessive length surcharge applies to 95″ model

Models: CFM83SLISF-HD1, CFM95SLISF-HD1, DFM83SLISF-HD1, DFM95SLISF-HD1

Brand

Continuous Hinge Type

Full Mortise (Concealed)
Finishes

C – Clear Anodized Aluminum, D – Dark Bronze Anodized Aluminum
Length

83" (for 7'0" door), 95" (for 8'0" door)
Material

Aluminum
Usage

Heavy Duty
Door Applications

1-3/4″ Thick Doors
Warranty

10 Years
