Pemko 434ARL Full Mortise Automatic Door Bottom with Sponge Neoprene Insert

Usually Ships: 2-3 Business Days
  • Full mortise, black sponge EPDM insert
  • Sound and air infiltration tested
  • Fire-rated and smoke tested

Available Options:

Clear

Pemko 434ARL Full Mortise Automatic Door Bottom, Mill Finish Aluminum, Black Sponge EPDM insert

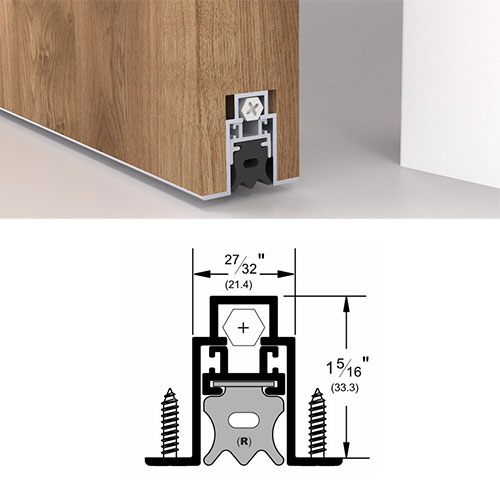

All Pemko automatic door bottoms consist of an aluminum case which surrounds a movable drop-bar seal. The drop-bar seal is actuated by a plunger that contacts the jamb as the door is closing, forcing the drop-bar seal down against the floor/threshold.

  • Smooth action, positive seal mechanism.
  • All Pemko automatic door bottoms consist of an aluminum case which surrounds a movable drop-bar seal.
  • The drop-bar seal is actuated by a plunger which contacts the jamb as the door is closing, forcing the drop-bar seal down against the floor / threshold.
  • Low Closing Force and Fully Mortise Application means this Drop Seal satisfies requirements for ANSI A117.1 and ADAAG 2010
  • This automatic door bottom is supplied with a EPDM Sponge (“R”) insert – item number E4303BL (black color, only)

434ARL: A – Mill Finish Aluminum Aluminum with Black Sponge EPDM insert

Ratings

  •  Air Infiltration Tested
  •  Sound Tested – ASTM E90
  •  BHMA Certified
  •  Smoke Tested – UL1784
  •  Fire Rated – UL10C – Positive Pressure
  •  Underwriters Laboratory 4L10
  •  GREENGUARD Gold Certified
Brand

Length

36", 48"

Finishes

A – Mill Finish Aluminum

Fire Rating

Fire Rated – UL10C – Positive Pressure
