Pemko 412_RL 36″ Surface Mounted Automatic Door Bottom

Usually Ships: 2-3 Days
  • 36″ – Surface Mounted
  • Sound and Air Infiltration Tested
  • Fire-Rated and Smoke Tested

Available Options:

  • Anodized Aluminum
  • Dark Bronze

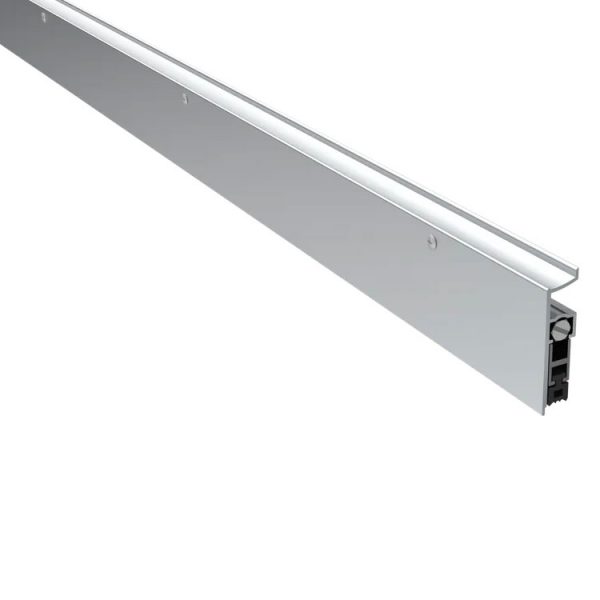

Consists of an aluminum case which surrounds a movable drop bar seal. The drop bar seal is actuated by a plunger which contacts the jamb as the door is closing, forcing the drop bar seal down against the floor or threshold.

  • Low closing force
  • Provide excellent seals to keep out draft, dust, moisture, insects, fumes, light and sound
  • End plates provided for all mounting applications

412CRL: C – Clear Anodized Aluminum with Black Sponge EPDM insert
412DRL: D – Dark Bronze Anodized Aluminum with Black Sponge EPDM insert


  •  Air Infiltration Tested
  •  Sound Tested – ASTM E90
  •  BHMA Certified
  •  Smoke Tested – UL1784
  •  Fire Rated – UL10C – Positive Pressure
  •  Underwriters Laboratory 4L10
  •  GREENGUARD Gold Certified



C – Clear Anodized Aluminum, D – Dark Bronze Anodized Aluminum



Fire Rating

Fire Rated – UL10C – Positive Pressure
