Pemko 308_PK Door Bottom Sweep with PemkoPrene Insert

Usually Ships: 10-15 Business Days

Economical door sweep
Seals against smoke, fire, air, sound, and weather
Fire-rated and smoke tested

Available Options:

Finish
Length	Clear

Quantity:

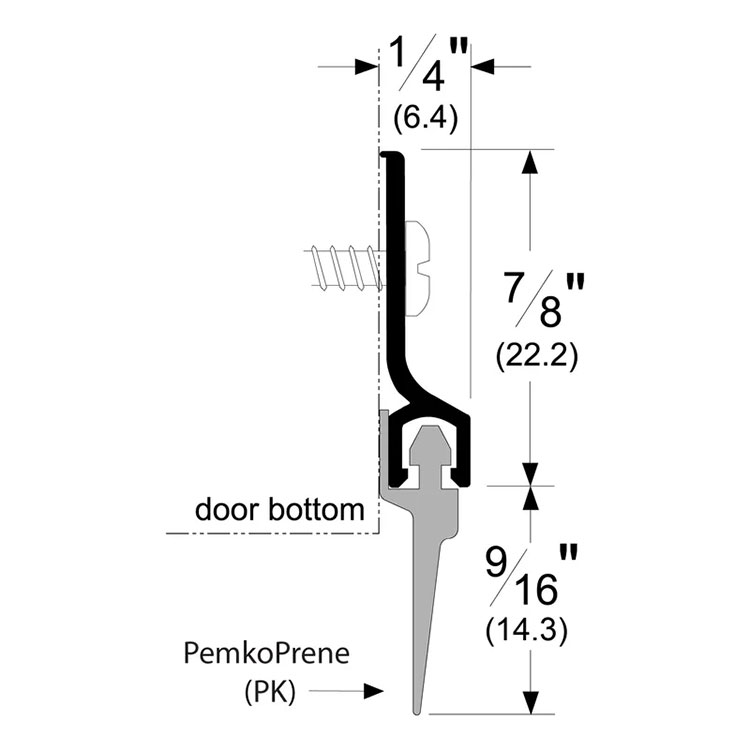

Pemko 308_PK Surface Plate Door Bottom Sweep with 9/16” PemkoPrene Insert

The 308 Series Surface Plate Rubber Door Sweep is designed to insulate and prevent the infiltration of moisture, fire, smoke, sound, and light. It can seal gaps up to .563″ between the door and threshold or the floor surface. The casing is surface mounted and fitted with a fire-rated PemkoPrene seal.

Slotted holes for easy adjustment
Recommended compression of gasket is 1/16″
Seal up to a 9/16″ the gap between the door and threshold or to the floor surface
Reduces the infiltration of light, air, wind, rain, and snow; prevent heat loss; and control the penetration of smoke and fumes

Finishes

308APK: A – Mill Finish Aluminum with PemkoPrene insert
308BSPPK: BSP – Black Suede Powder Coat with PemkoPrene insert
308DPK: D – Dark Bronze Anodized Aluminum with PemkoPrene insert

Ratings

BHMA Certified
Smoke Tested – UL1784
Fire Rated – UL10C – Positive Pressure
Underwriters Laboratory 4L10
GREENGUARD Gold Certified

Brand	Pemko
Finishes	A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat
Length	36", 48"
Fire Rating	Fire Rated – UL10C – Positive Pressure
