Pemko 29310CS Perimeter Gasketing Weatherstrip with Silicone Insert and Snap Cover (Concealed Fasteners)

Usually Ships: 10-20 Days
  • Use on door frames to seal top and sides of door
  • Concealed fasteners (snap cover)
  • Clear anodized aluminum w/ silicone insert

Available Options:

Clear

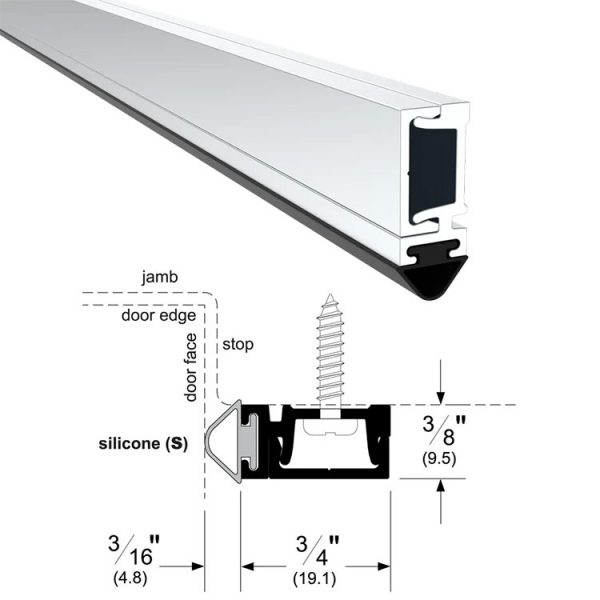

Designed to be applied to the “stop” perimeter of the door frame. Includes a silicone seal with aluminum framing. The silicone seal compresses against the door, to create a tight weatherproof seal.

  • Snap Cover with Concealed Fasteners
  • Low-profile snap cover conceals mounting screws to provide security and a clean aesthetic appearance.
  • This perimeter gasketing is supplied with a Silicone (“S”) insert
  • Stainless steel fasteners are standard
  • Available Sizes: 36″ x 84″ Set, 72″ x 84″ Set, 84″ Single Piece, and *96″ Single Piece
  • Full-Length; Field-Cut to Size

*excessive length shipping fee applies

29310CS: C – Clear Anodized Aluminum with Gray Silicone insert

Ratings

  • Air Infiltration Tested
  • BHMA Certified
  • Smoke Tested – UL1784
  • Fire Rated – UL10C – Positive Pressure
  • Underwriters Laboratory 4L10
  • GREENGUARD Gold Certified



Brand

Finishes

C – Clear Anodized Aluminum

Size

36" x 84", 72" x 84", 84", 96"

Fire Rating

Fire Rated – UL10C – Positive Pressure

Gasket Type

Screw-on

Insert/Seal Type

Silicone
