PDQ SD115 SFL Storeroom Lever Lock, Small Format Interchangeable Core Prep

Usually Ships: 2-3 Business Days
  • ANSI/BHMA A156.2 Grade 2 certified
  • Small format interchangeable core prep (core sold separately)
  • ADA compliant, 3-hour fire-rated

Available Options:

Product Overview

PDQ SD115 Lever Lockset, Storeroom Function, Grade-2, 2-3/4″ Backset, ASA Strike, SFL (SFIC) Small Format Interchangeable Core Prep

PDQ’s SD Series Grade 2 Cylindrical Lock has been value-engineered to meet your quality and cost expectations! Backed by a reassuring 5-year warranty, you can put your trust in the reliability and performance of this lock.

ANSI Function F86 – Latchbolt operated from outside by key, inside by lever. Outside lever always fixed. Inside lever always free. Deadlocking (guarded) latchbolt.

Interchangeable core users can enjoy the convenience of fast rekeying without having to disassemble the lock. This feature is very useful in applications where a high frequency of core changes are needed.

  • SFIC = Small Format Interchangeable Core (Core Sold Separately)
  • Heavy-gauge cold-rolled steel locking mechanism – Dichromate for corrosion resistance.
  • Removable thru-bolts
  • *4-Lever Styles: PHL (Philadelphia), BSN (Boston), MIA (Miami), ORL (Orlando)
  • *3-Finishes: 613E(US10BE), 622(US19), 626(US26D)
  • UL/CUL 10C listed 3-hour fire door, for single doors up to 4’ x 8’
  • Certified to ANSI/BHMA A156.2 Grade 2
  • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings

* PHL (Philadelphia) Lever Design in 626 Finish Shown

sd_certs

Brand

Finishes

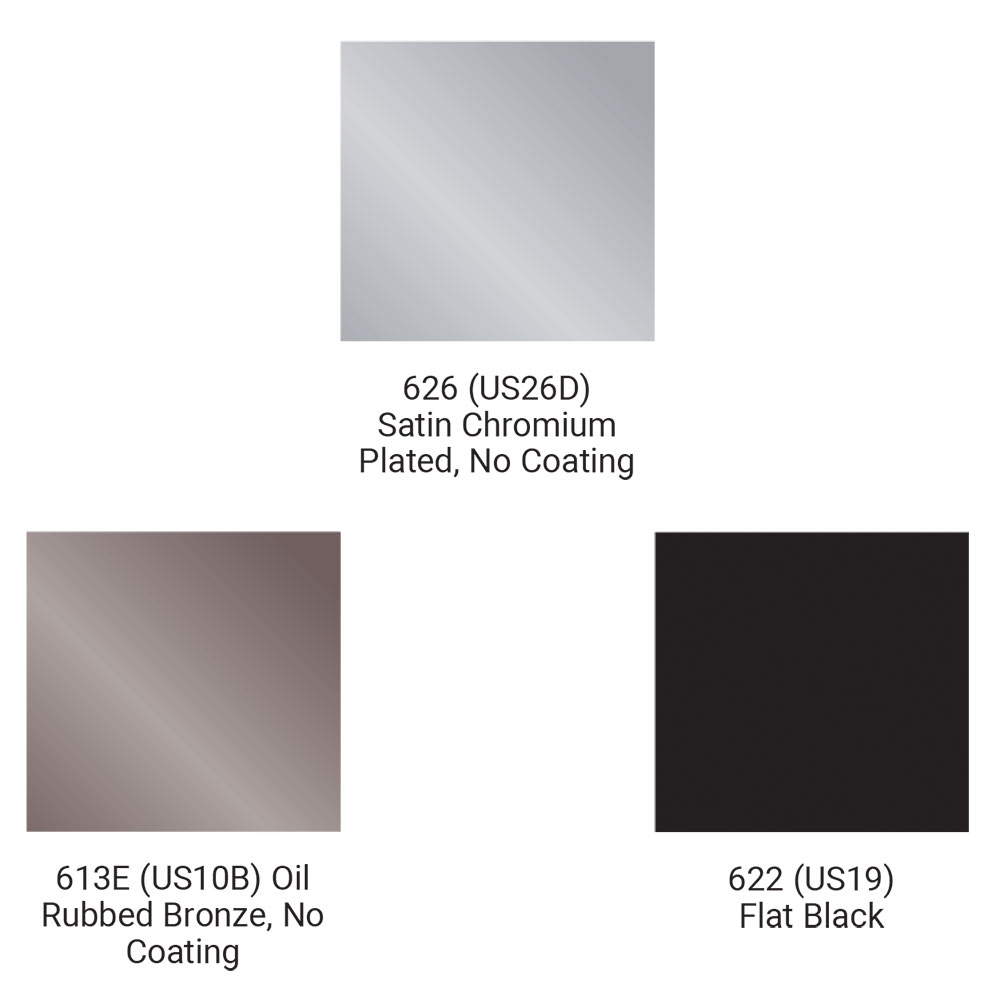

613e Dark Oxidized Satin Bronze equivalent, 622 Flat Black, 626 Satin Chrome
Lever Design

BSN (Boston), MIA (Miami), ORL (Orlando), PHL (Philadelphia)
Rose Diameter

3-3/8” DIA Wrought
Usage

Medium Duty
Lock Function

Storeroom
ANSI/BHMA Standard

Certified to ANSI/BHMA A156.2 Grade 2
Fire Rating

UL Listed for “A” Label 3 Hour Fire Doors
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Backset

2-3/4"
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Handing

Non Handed – Completely Reversible
Latch

1/2" throw – 1-1/8" x 2-1/4" face
Warranty

5 Year
